Cloud-Powered Media Players for Digital Signage
Cloud-Powered Media Players for Digital Signage

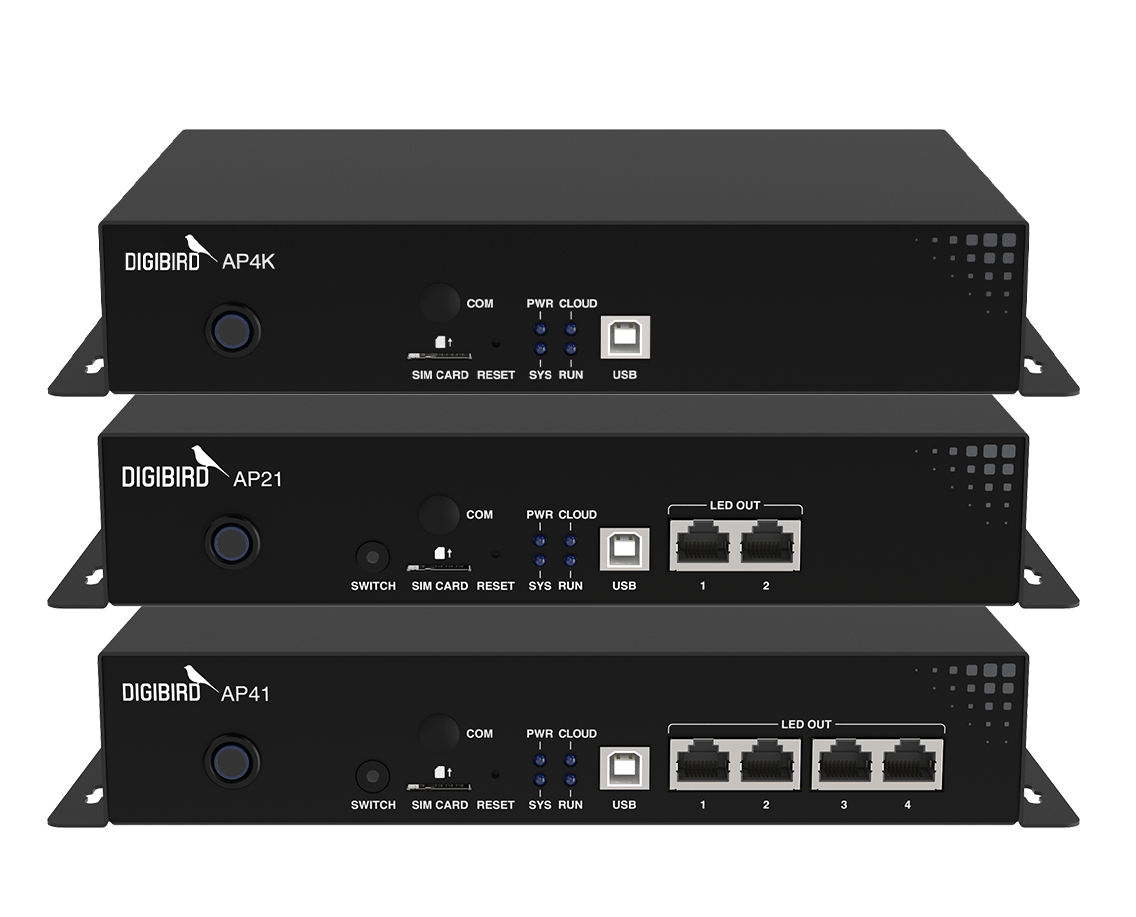

AP Series is cloud-based media player, which integrates media player and LED sending controller and is designed for both LCD and LED displays. It supports flexible playback from local USB drives, live HDMI input, and cloud storage.
Powered by the content management platform, it enables effortless management of content scheduling, advanced layout design, and liver status monitoring.

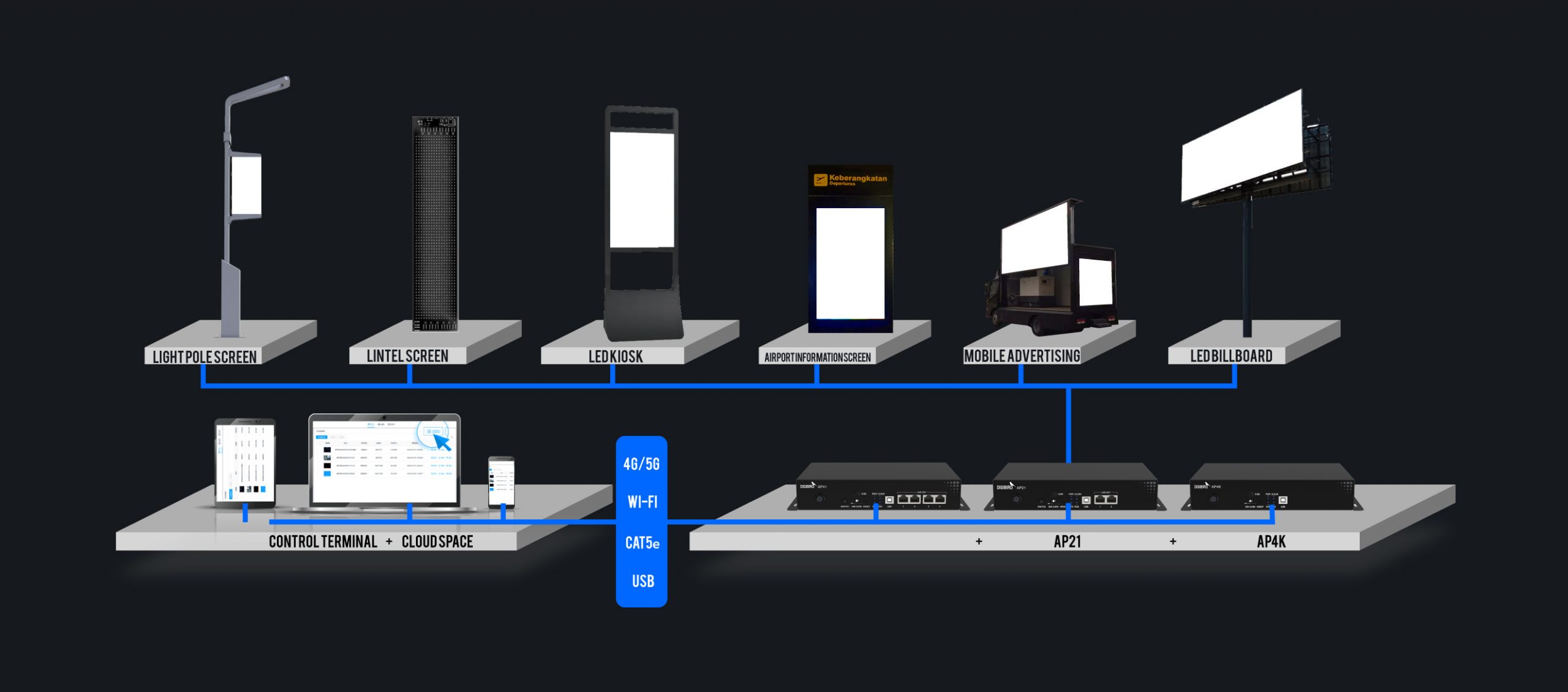

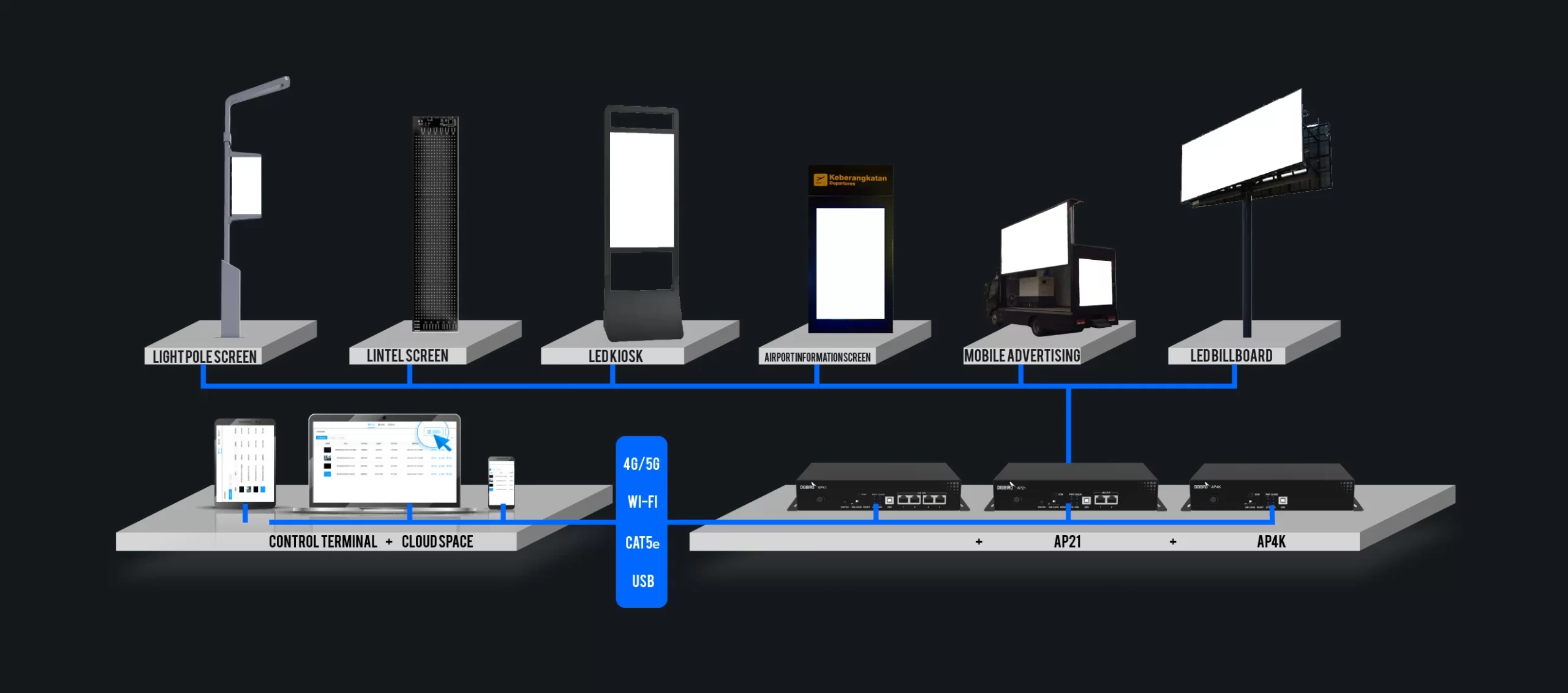

AP series integrates media player and LED sending controller, can deliver content to both LED and LCD displays for versatile applications.

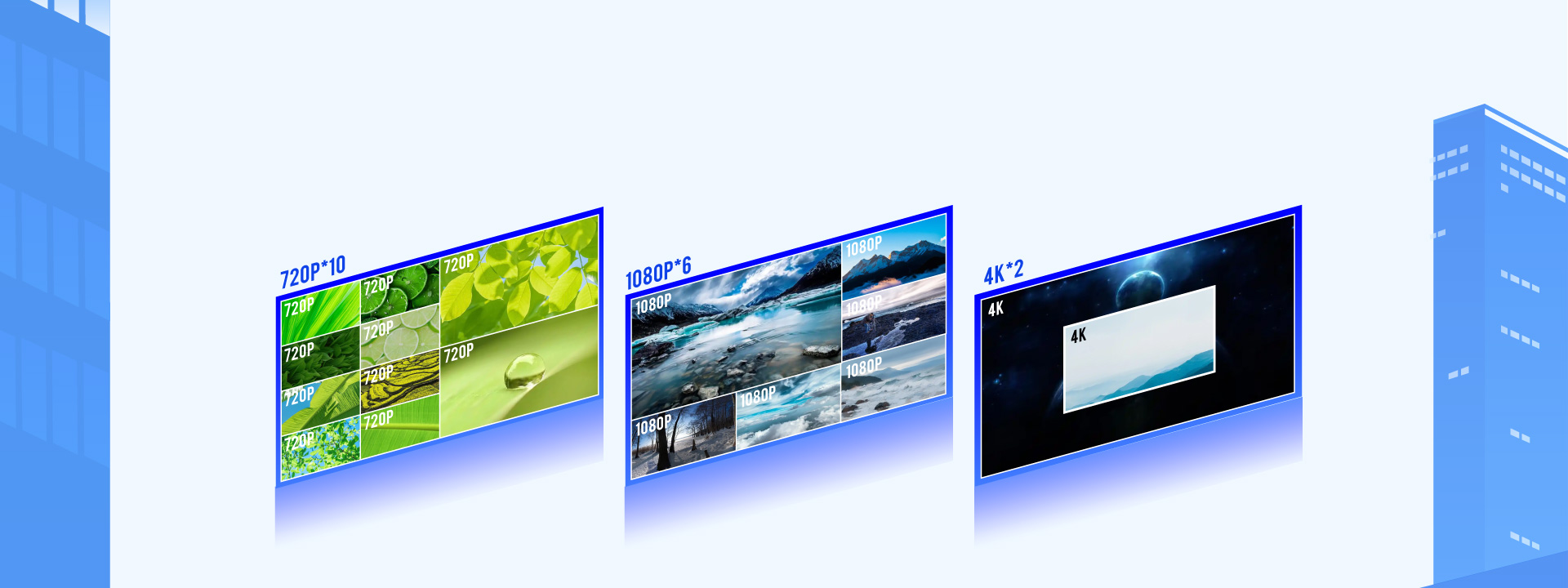

Supports customized screen layout settings, flexible configuration and synchronous playback of Multimedia contents of different types and resolution.

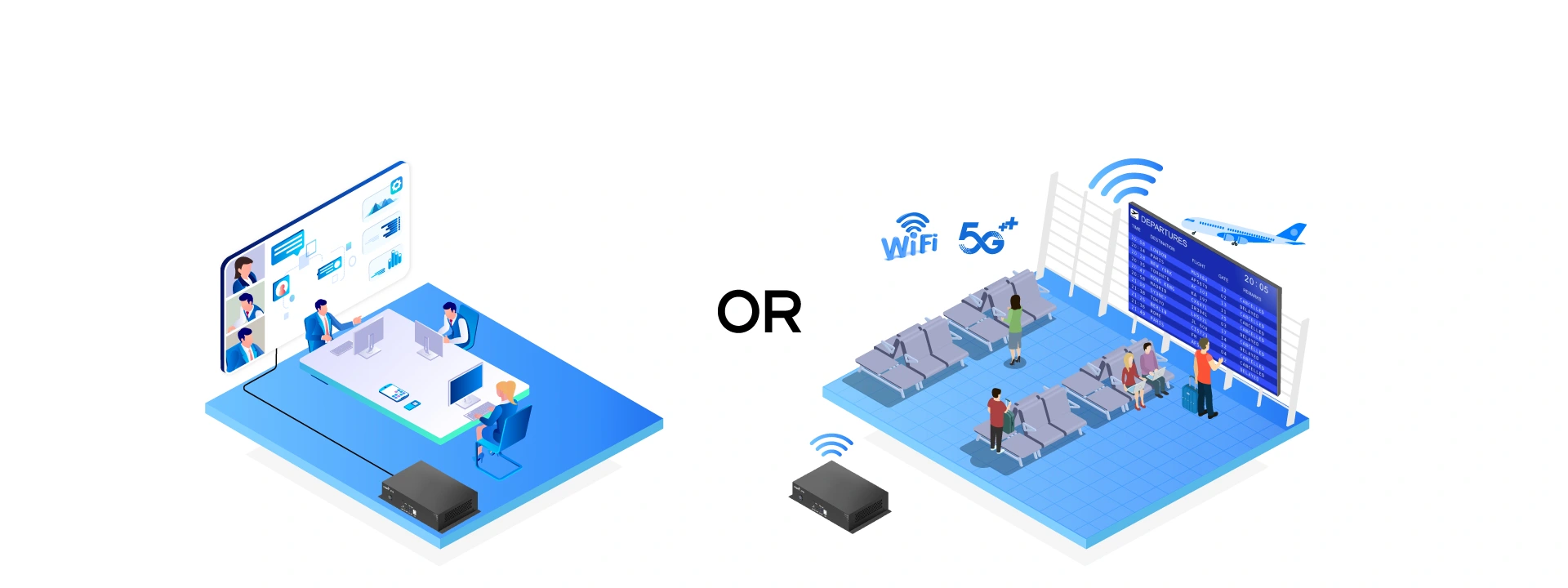

Supports HDMI direct mirror mode and built-in playback mode. The two play modes can be switched on demand.

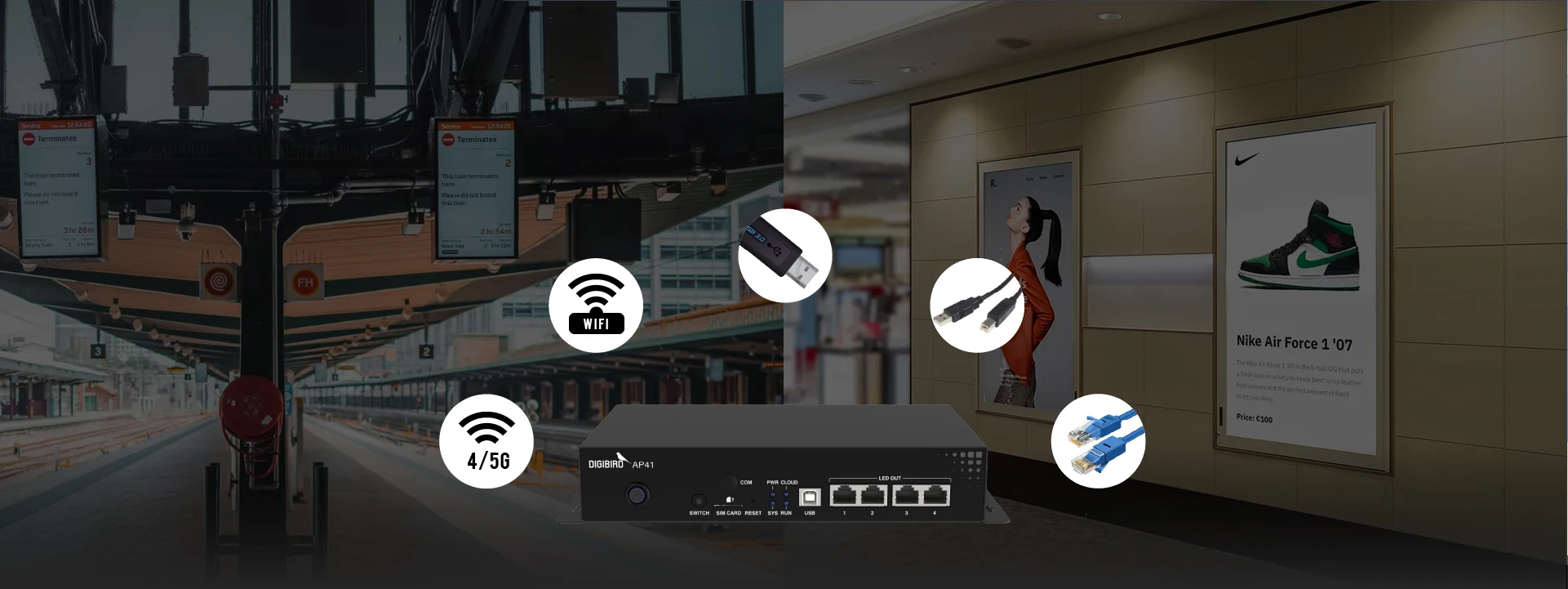

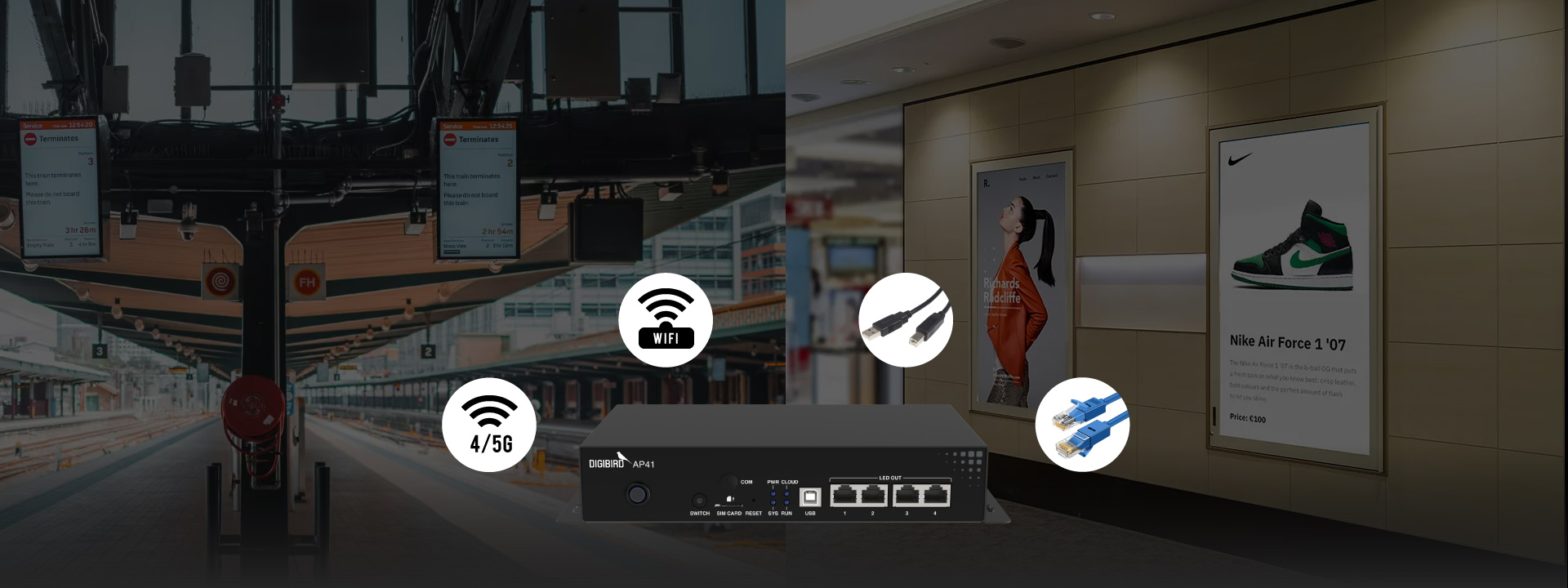

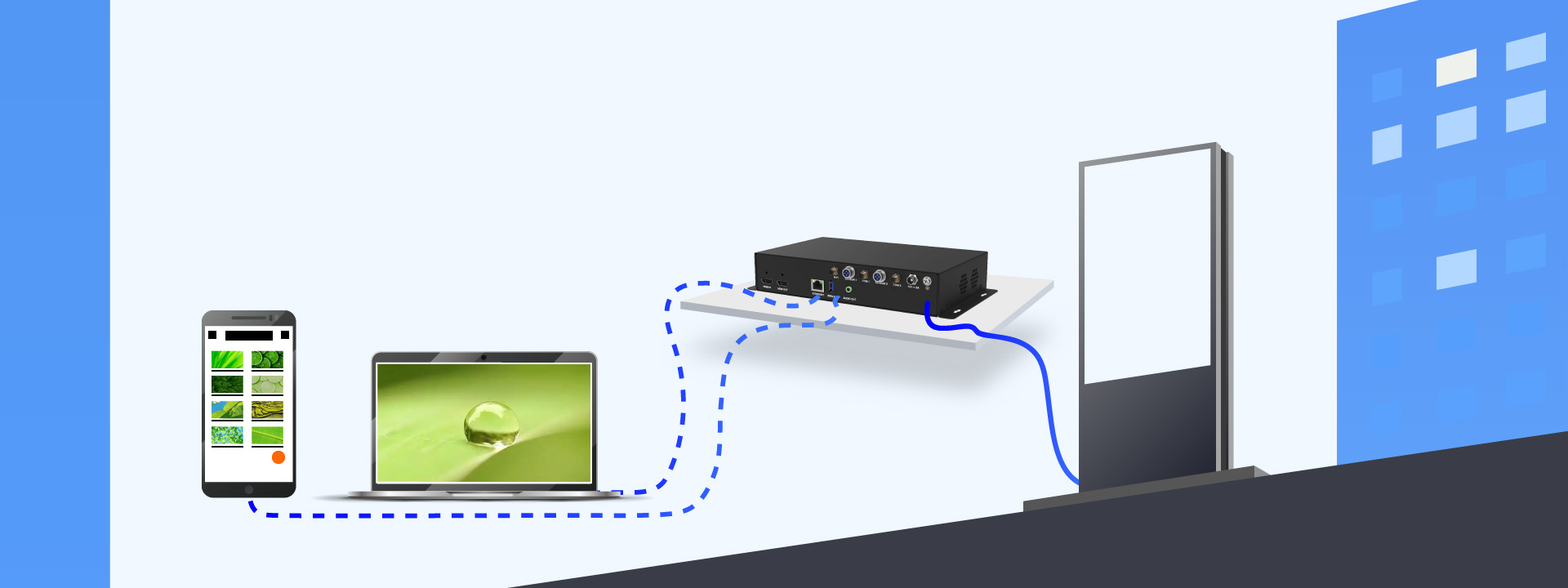

Supports communication via USB, wired Ethernet, Wi-Fi, 4G/5G, etc., covering different application scenarios.

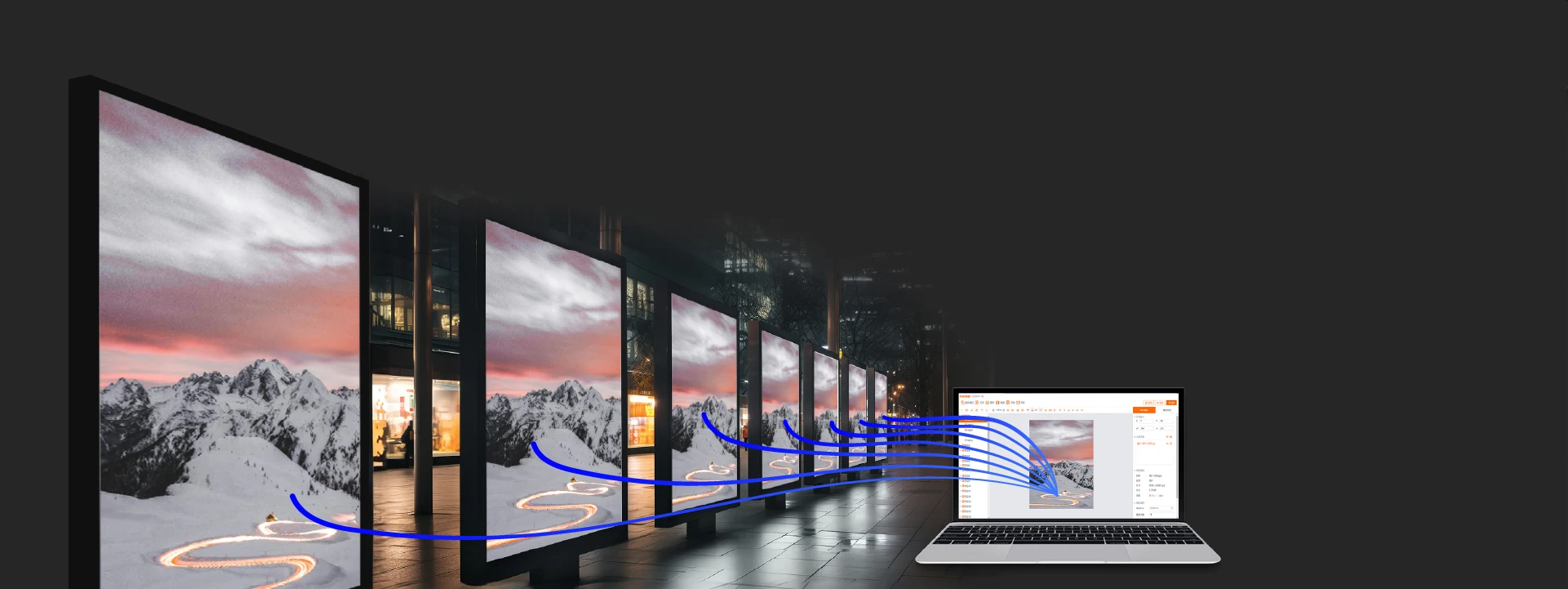

The contents can be published to multiple screens at the same time, supporting NTP synchronization, GPS timing synchronization, and RF synchronization to ensure signal synchronization.
Incorporate various components (images, video, documents, webpages, text) into playlists, significantly enriching your playlist content.
Optimizing memory usage, ensuring file quality, and improving content playback experience.

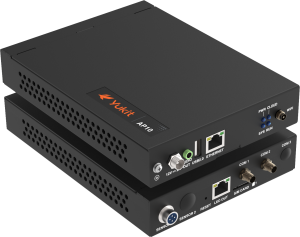

| Item |  AP10 |

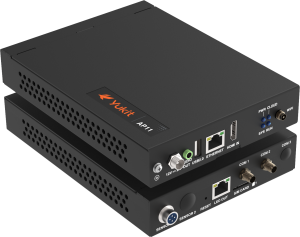

 AP11 |
 AC112 |

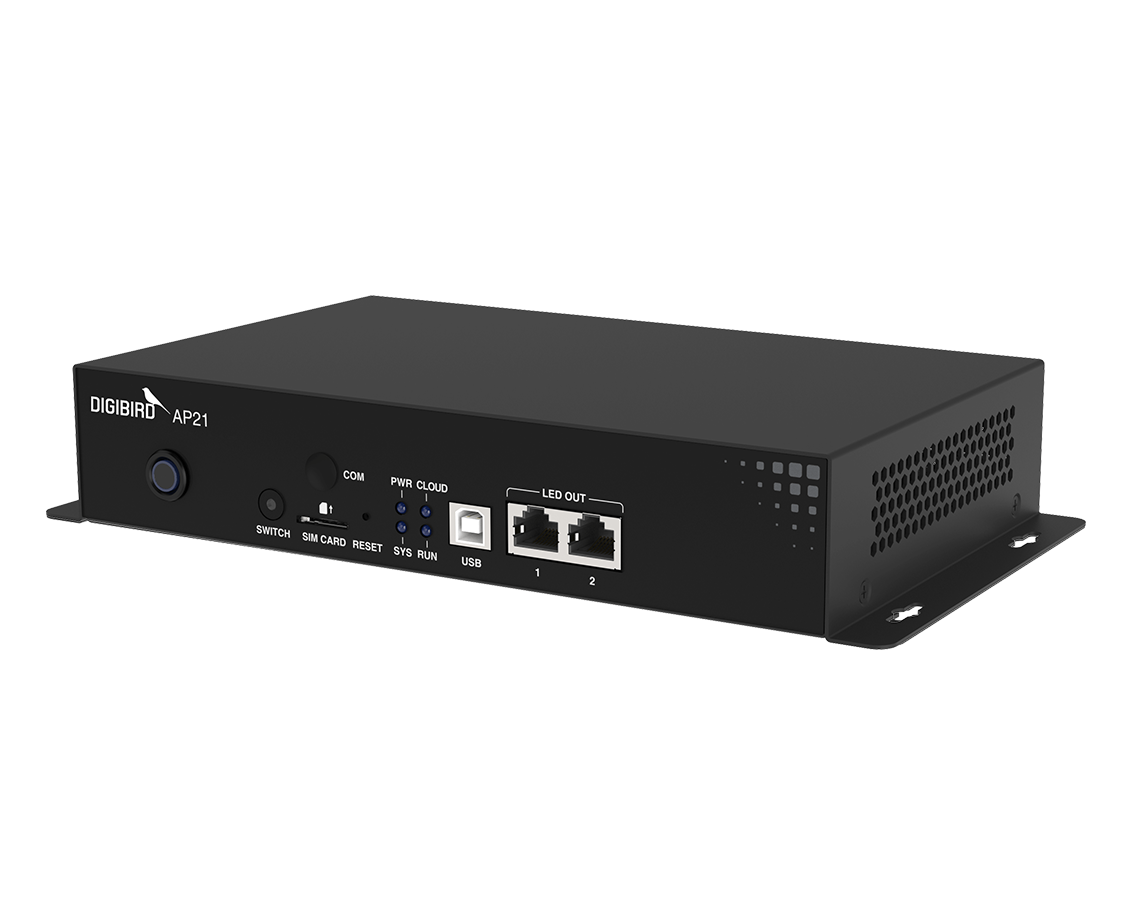

 AP21 |

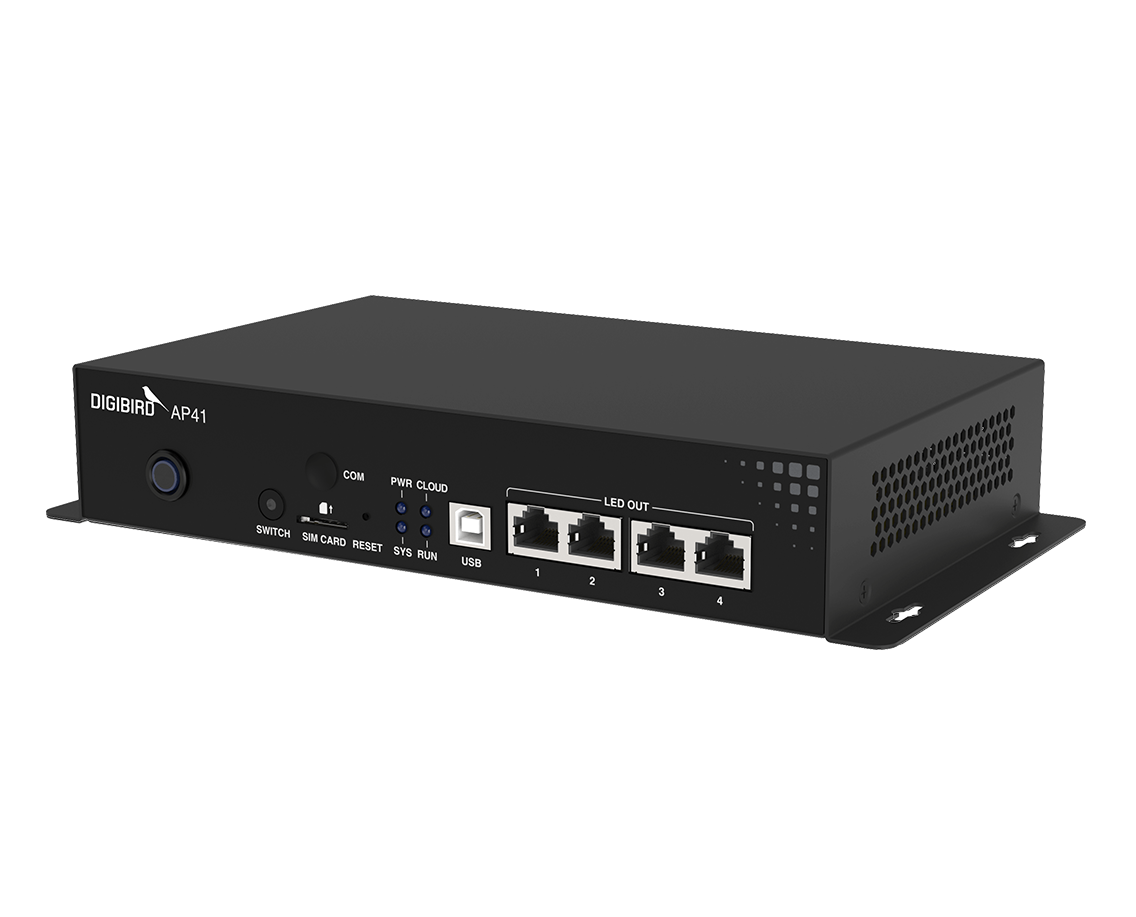

 AP41 |
 AP2K |

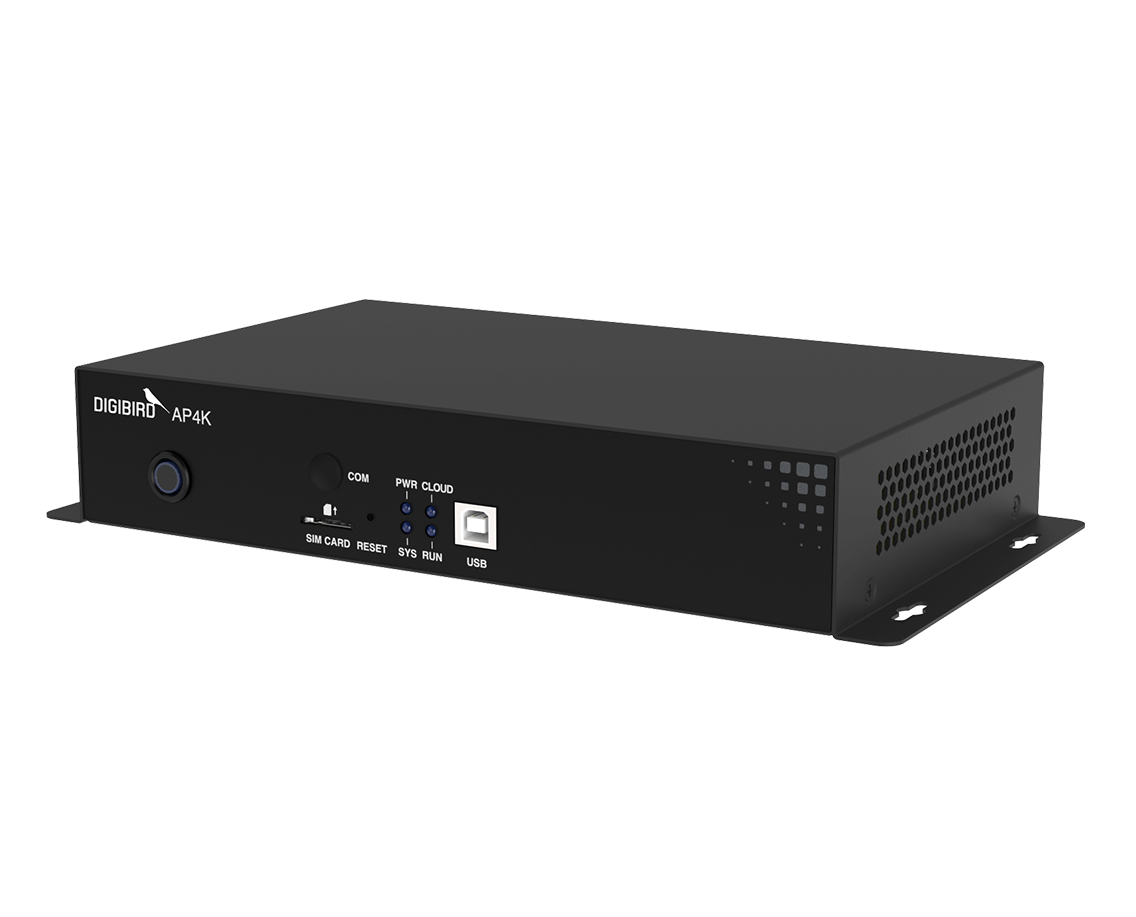

 AP4K |
| Loading Capacity | 0.65m Pixels | 0.65m Pixels | 0.91m Pixels | 1.3m Pixels | 2.3m Pixels | 2.07m Pixels | 8.8m Pixels |
| Max Width & Height | Width 1,920 Height 1,920 |
Width 1,920 Height 1,920 |
Width 1,920 Height 1,920 |
Width 4,096 Height 4,096 |
Width 4,096 Height 4,096 |
Width 1,920 Height 1,920 |
Width 4,096 Height 4,096 |
| Storage (RAM+ROM) | 1GB+32GB | 1GB+32GB | 1GB+32GB | 1GB+32GB | 1GB+32GB | 1GB+32GB | 2GB+32GB |
| USB (USB3.0) | 128GB | 128GB | 128GB | 128GB | 128GB | 128GB | 128GB |
| USB Playback | Support | Support | Support | Support | Support | Support | Support |
| Decoding Capacity | 2K | 2K | 2K | 4K | 4K | 2K | 4K |
| Layers | 1x1080P/ 2x720P / 4x480P / 4x360P/ |
1x1080P/ 2x720P / 4x480P / 4x360P/ |
1x1080P/ 2x720P / 4x480P / 4x360P/ |
1x 4K/2x 1080P/ 4x 720P/ 4x 480P/ 8x 360P/ |
1x 4K/ 2x 1080P/ 4x 720P/ 4x 480P/ 8x 360P/ |
1x1080P/ 2x720P / 4x480P / 4x360P/ |
2x 4K/ 6x 1080P/ 10x 720P/ 16x 360P/ |
| Local & Pre-loaded Playback Switch |
/ | Support | / | Support | Support | / | / |
| Ethernet | 100MPS | 100MPS | 100MPS | 1,000MPS | 1,000MPS | 100MPS | 1,000MPS |
| 2.4G WiFi | Support | Support | Support | Support | Support | Support | Support |
| 4G/5G Module | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Sync | Support | Support | Support | Support | Support | Support | Support |
| Audio Output | Support | Support | Support | Support | Support | Support | Support |
