Unified Work Station System Designed for Operators

Concern on information security? Go to Fiber!

DB-UniStation

AV & KVM Over Fiber

For mission critical applications, information security and instant response are always top priority when selecting pro-av solutions. To address these concerns, DigiBird launched DB-UniStation, which can transfer 4K 60Hz video, audio and control over fiber with no latency and high security. With single keyboard and mouse set, UniStation allows operator to manage multiple remote computers and video wall display in real time.

Mouse-based OSD control

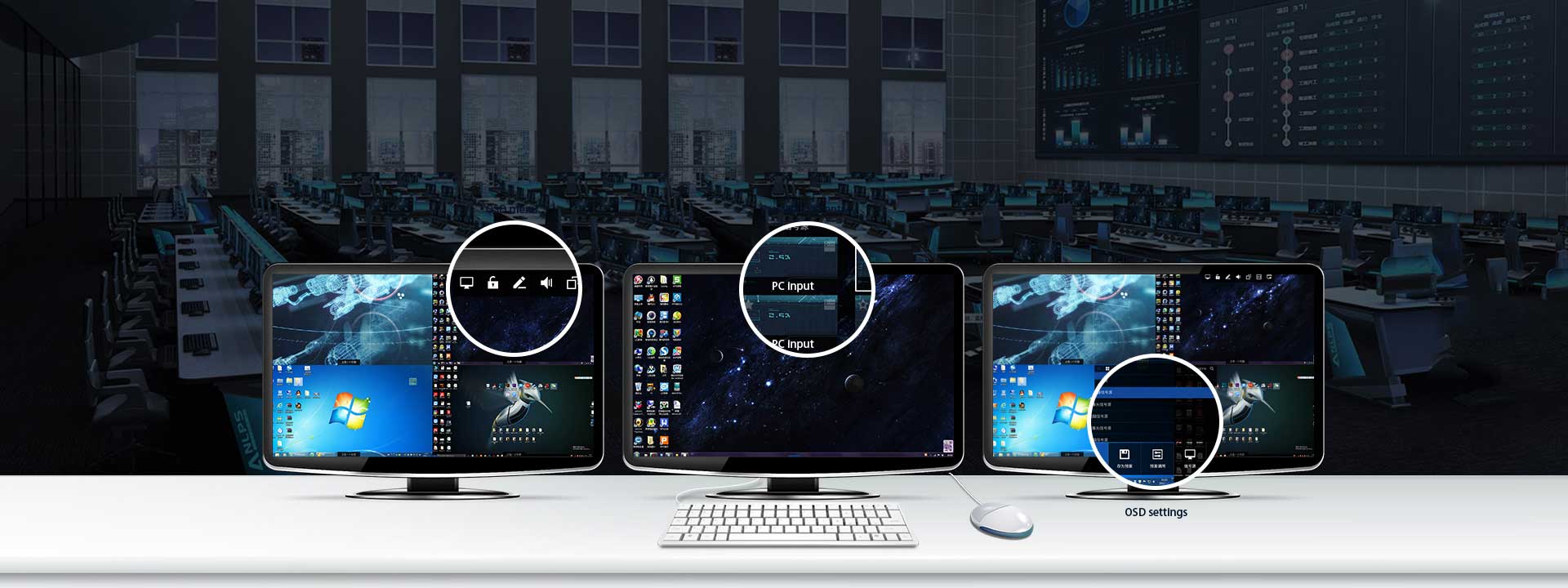

On each monitor, operator can call OSD menu, and slide mouse to preview source contents, switch sources, select work mode, and recall pre-saved presets, which contributes high working efficiency.

Mouse Based OSD Menu to switch and live preview sources

Single mouse and keyboard set

Compared to traditional solution, UniStation enable operator to manage multiple monitors via one keyboard and mouse set. Mouse cursor can free slide among monitors to control desired computer.

Single Keyboard and Mouse Set to manage multiple monitors

Physical isolation and secured access

The signals transmitted via the fiber optical system in uni-directional by DigiBird encoders,
are isolated physically and remotely to protect more security among different networks domains.
The operators (working in the control room) only have access at the presentation layer and are separated from the back-end systems (located in the server room) that host the contents.

Fiber Matrix & video wall controller-DigiBird

SPECS



Order Code: Size: Description: I/O Cards: I/O Ports: Dimensions
(Lx Dx H, mm)
PSUs (D+R) Net Weight
DB-AVCL-US-FR4K 4U 4U Chassis, up to 10x I/O slots 10 80 440x 325x 178 1+1 11.3 kg
DB-AVCL-US-FR8K 8U 8U Chassis, up to 20x I/O slots 20 160 440x 325x 355 1+1 19 kg
DB-AVCL-US-FR15K 15U 15U Chassis, up to  20x input slots and 20x output slots 40 320 440x 460x 667 2+2 37 kg
DB-AVCL-US-FR26K 26U 26U Chassis, up to 36x input slots and 36x output slots 72 576 440x 460×1154 2+2 56 kg











Input Cards
Order Code: Port Type: Description: Ports Qty. Signal Type: Resolution:
DB-AVCL-US-IC-EF8 LC 8 Channels enhanced fiber input card. 8 Optical N/A
DB-AVCL-US-IC-4KHDMI4 HDMI 4 Channels 4k HDMI input card. 4 4K HDMI 3840×2160/30Hz
DB-AVCL-US-IC-DVI4 DVI 4  Channels DVI input card. 4 DVI 1920X1200/60H
DB-AVCL-US-IC-VGA4 VGA 4 Channels VGA input card. 4 VGA 1920X1200/60H
DB-AVCL-US-IC-4KDP4 DP  4 Channels 4KDP input card. 4 4K DP 3840×2160/30Hz
DB-AVCL-US-IC-SDI4 SDI 4 Channels SDI input card 4 SDI 1920X1080/60H
DB-AVCL-US-IC-IPH2 RJ45 2 channels IP  input card. 2 IP 1920X1080/30H
DB-AVCL-US-IC-4KIPH2 RJ45 2 channels 4K IP  input card. 2 4K IP 3840×2160/30Hz
DB-AVCL-US-IC-4KHDBaseT4 RJ45 4 channels HDBT 4K input card. 4 HDBaseT 3840×2160/30Hz
DB-AVCL-US-IC-YPBPR4 VGA 4 channels YPbPr input card. 4 YPbPr 1920X1080/60H
DB-AVCL-US-IC-VIDEO4 BNC 4 channels video input card. 4 CVBS

720×480/720×576

Output Cards
Order Code: Port Type: Description: Ports Qty. Signal Type: Resolution:
DB-AVCL-US-OC-F8 LC 8 Channels fiber output card. 8 Optical N/A
DB-AVCL-US-OC-F4 LC 4 Channels fiber output card. 4 Optical N/A
DB-AVCL-US-OC-F2 LC 2 Channels fiber output card. 2 Optical N/A
DB-AVCL-US-OC-CVBS4 CVBS 4 Channels CVBS output card. 4 CVBS 720×480/720×576
DB-AVCL-US-EOC-4KHDMI4 HDMI 4 Channels enhanced 4K HDMI output card. 4 4K HDMI 3840×2160/30Hz
DB-AVCL-US-EOC-DVI4 DVI 4 Channels enhanced DVI output card. 4 DVI 1920X1200/60Hz
DB-AVCL-US-EOC-VGA4 VGA 4 Channels enhanced VGA output card. 4 VGA 1920X1200/60Hz
DB-AVCL-US-EOC-CVBS4 CVBS 4 Channels enhanced CVBS output card. 4 CVBS 720×480/720×576
DB-AVCL-US-EOC-4KHDBaseT4 IP 4 channels enhanced HDBaseT 4K output card. 4 HDBaseT 3840×2160/30Hz
DB-AVCL-US-EOC-SDI4 SDI 4 channels enhanced SDI output card 4 SDI 1920X1080/60H
DB-AVCL-US-EOC-4KDP4 DP 4 channels enhanced DP 4K output card. 4 DP 3840×2160/30Hz
DB-AVCL-US-OC-NPC RJ45 Network previewing card 1 Network N/A
Transmitter (Tx)- Transmitter
Order Code: Port Type: Description: Input Output Resolution:
DB-AVCL-US-DVI-F1-KUTX DVI – Fiber DVI Transmitter, support USB 2.0 1x DVI 1x DVI loop, 1x Fiber 1920X1200/60H
DB-AVCL-US-DVI-F1-KUTXC DVI – Fiber DVI Transmitter Card, support USB 2.0 1x DVI 1x DVI loop, 1x Fiber 1920X1200/60H
DB-AVCL-US-DVI-F1-KTX DVI – Fiber DVI Transmitter 1x DVI 1x DVI loop, 1x Fiber 1920X1200/60H
DB-AVCL-US-DVI-F1-KTXC DVI – Fiber DVI Transmitter Card 1x DVI 1x DVI loop, 1x Fiber 1920X1200/60H
DB-AVCL-US-4KHDMI-F1-KUTX 4K HDMI – Fiber 4K HDMI Transmitter, support USB 2.0 1x HDMI 1.4 1x HDMI 1.4, 1x Fiber 3840×2160/30Hz
DB-AVCL-US-4KHDMI-F1-KUTXC 4K HDMI – Fiber 4K HDMI Transmitter Card, support USB 2.0 1x HDMI 1.4 1x HDMI 1.4, 1x Fiber 3840×2160/30Hz
DB-AVCL-US-4KHDMI-F1-KTX 4K HDMI – Fiber 4K HDMI Transmitter 1x HDMI 1.4 1x HDMI 1.4, 1x Fiber 3840×2160/30Hz
DB-AVCL-US-4KHDMI-F1-KTXC 4K HDMI – Fiber 4K HDMI Transmitter Card 1x HDMI 1.4 1x HDMI 1.4, 1x Fiber 3840×2160/30Hz
DB-AVCL-US-4KDP-F1-KUTX 4K DP – Fiber 4K DP Transmitter, support USB 2.0 1x DP 1.1 1x DP loop, 1x Fiber 3840×2160/30Hz
DB-AVCL-US-4KDP-F1-KUTXC 4K DP – Fiber 4K DP Transmitter Card, support USB 2.0 1x DP 1.1 1x DP loop, 1x Fiber 3840×2160/30Hz
DB-AVCL-US-4KDP-F1-KTX 4K DP – Fiber 4K DP Transmitter 1x DP 1.1 1x DP loop, 1x Fiber 3840×2160/30Hz
DB-AVCL-US-4KDP-F1-KTXC 4K DP – Fiber 4K DP Transmitter Card 1x DP 1.1 1x DP loop, 1x Fiber 3840×2160/30Hz
Receiver (Rx)- Receiver
Order Code: Port Type: Description: Input Output Resolution:
DB-AVCL-US-DVI-F1-KURX Fiber to DVI DVI Receiver, support USB 2.0 1x Fiber 1x DVI-I 1920X1200/60Hz
DB-AVCL-US-DVI-F1-KURXC* Fiber to DVI DVI Receiver Card, support USB 2.0 1x Fiber 1x DVI-I 1920X1200/60Hz
DB-AVCL-US-DVI-F1-KRX Fiber to DVI DVI Receiver 1x Fiber 1x DVI-I 1920X1200/60Hz
DB-AVCL-US-DVI-F1-KRXC Fiber to DVI DVI Receiver Card 1x Fiber 1x DVI-I 1920X1200/60Hz
DB-AVCL-US-4KHDMI-F1-KURX Fiber to HDMI 1.4 4K HDMI Receiver, support USB 2.0 1x Fiber 1x HDMI 1.4  3840×2160/30Hz
DB-AVCL-US-4KHDMI-F1-KURXC Fiber to HDMI 1.4 4K HDMI Receiver Card, support USB 2.0 1x Fiber 1x HDMI 1.4  3840×2160/30Hz
DB-AVCL-US-4KHDMI-F1-KRX Fiber to HDMI 1.4 4K HDMI Receiver 1x Fiber 1x HDMI 1.4  3840×2160/30Hz
DB-AVCL-US-4KHDMI-F1-KRXC Fiber to HDMI 1.4 4K HDMI Receiver Card 1x Fiber 1x HDMI 1.4  3840×2160/30Hz
DB-AVCL-US-4KDP-F1-KURX Fiber to DP 1.1 4K DP Receiver, support USB 2.0 1x Fiber 1x DP 1.1 3840×2160/30Hz
DB-AVCL-US-4KDP-F1-KURXC Fiber to DP 1.1 4K DP Receiver Card, support USB 2.0 1x Fiber 1x DP 1.1 3840×2160/30Hz
DB-AVCL-US-4KDP-F1-KRX Fiber to DP 1.1 4K DP Receiver 1x Fiber 1x DP 1.1 3840×2160/30Hz
DB-AVCL-US-4KDP-F1-KRXC Fiber to DP 1.1 4K DP Receiver Card 1x Fiber 1x DP 1.1 3840×2160/30Hz







DIAGRAM

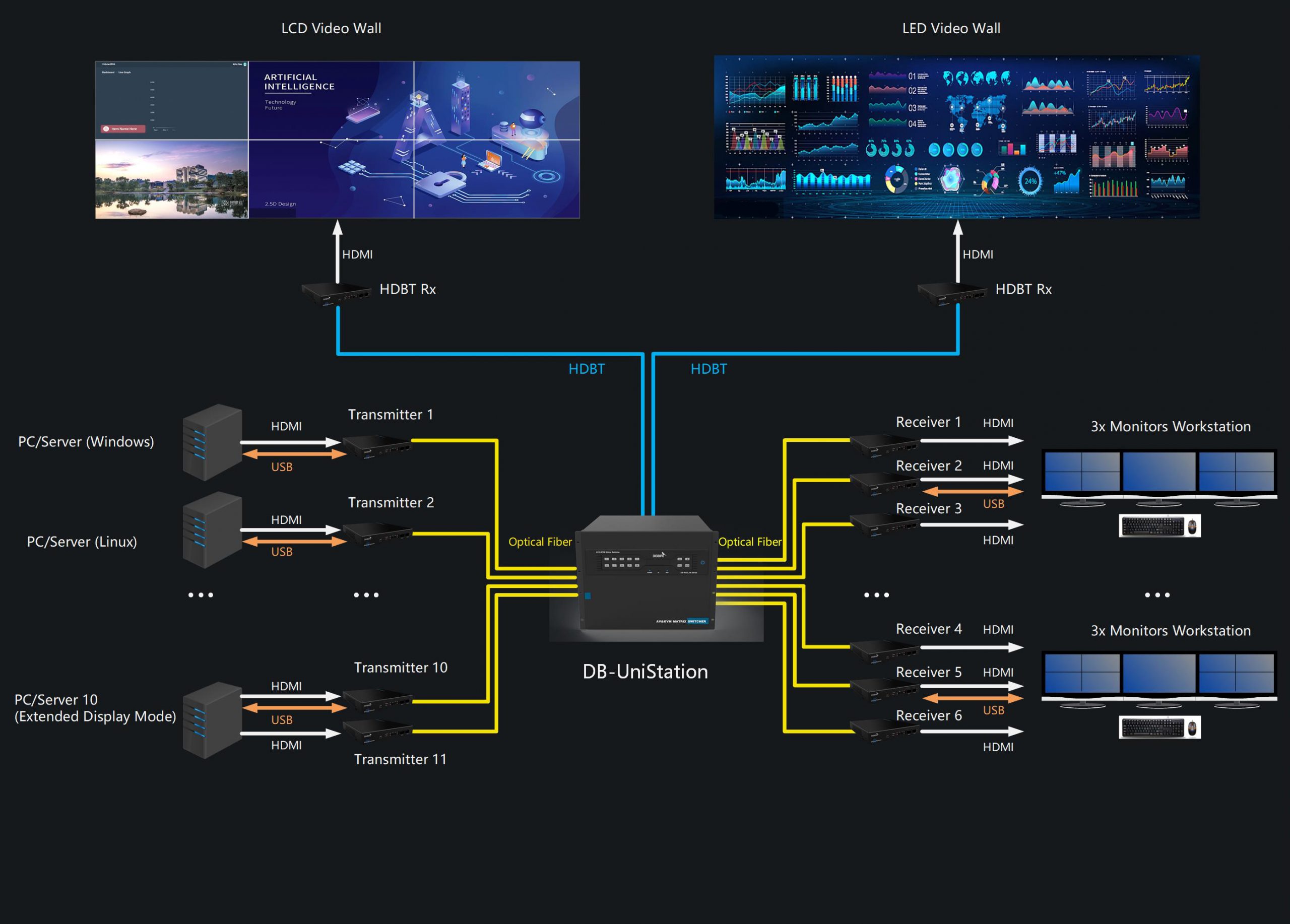

AV over Fiber solution diagram

DOWNLOAD

Tender Specs of DB-UniStation

0.21M

2020/12/09

Datasheet of DB-UniStation

0.12M

2020/12/09

Hardware Manual of DB-UniStation

0.74M

2020/12/09

User Guide of DB-UniStation

4.09M

2020/12/09

Brochures of DB-UniStation

9.61M

2020/12/09

Hardware Profile

2.1M

2021/01/08
