Small in Size, Big on Power

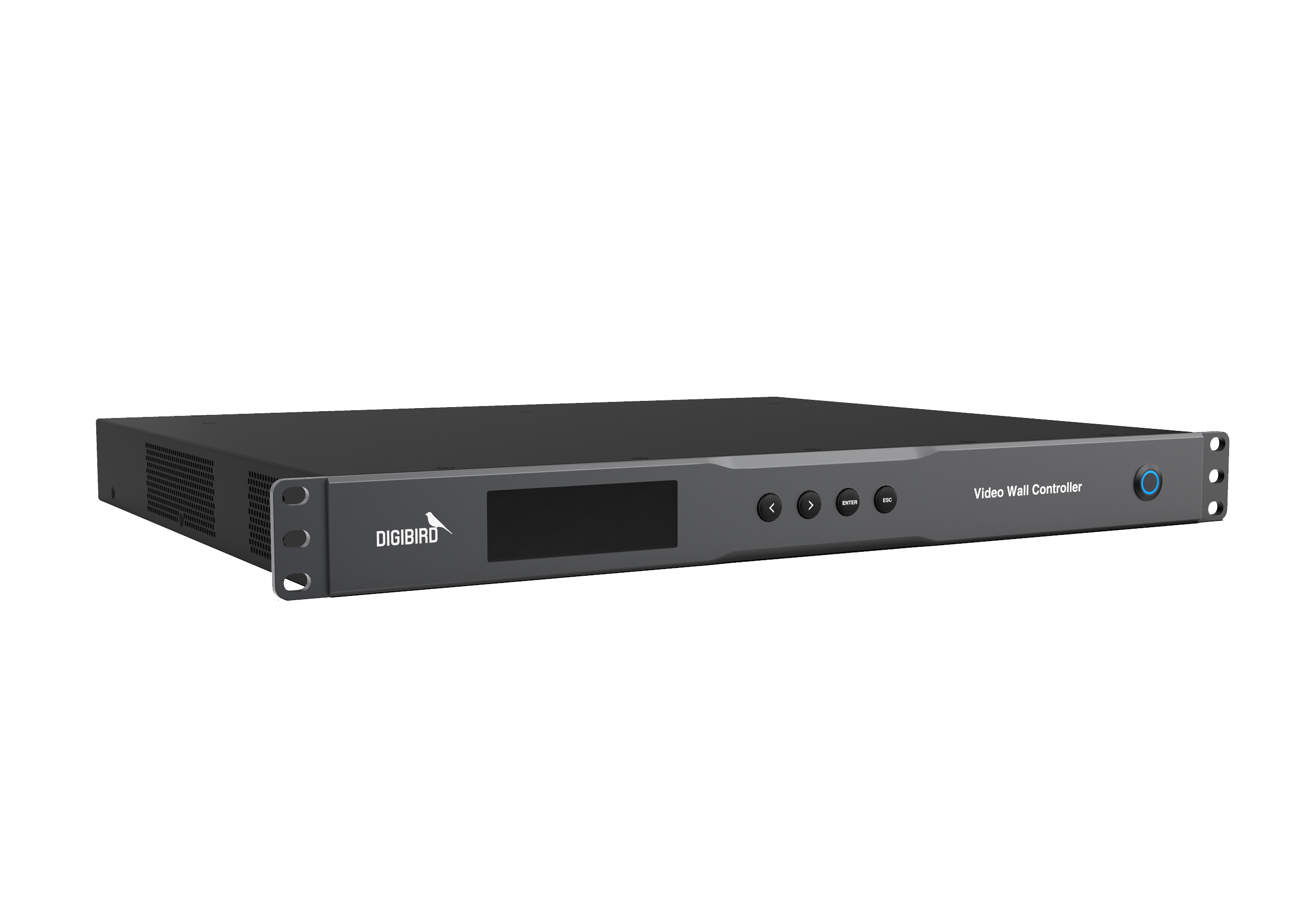

4K60 Compact Video Wall Controller

VWC2-BPro

VWC2-BPro

VWC2-BPro is a compact video wall controller which delivers 4k/60 visual experiences. Up to 4x input sources can be displayed simultaneously to LCD wall or LED wall with any size and at any position.
(Available in August, 2021)

  • 4K 60Hz

    4K 60Hz

  • PIP & Overlay

    PIP & Overlay

Flexible Layout

Zooming, roaming, PIP and overlay supported. Sources can be displayed to video wall at any position with any size.

Easy to Use

With tailored GUI, DigiBird App and control software allows operator to manage display through simple drag-and-drop operation.

UHD Experience

4k 60Hz processing at 4:4:4 to deliver 4K experience without any compromising.

Versatile Application

With capabilities to support embedded audio and eARC, BPro offers higher flexibility for versatile applications, such as meeting rooms, small control rooms and digital signage.

SPECS



Item Description Item Description
Interface HDMI 2.0 Customized Resolution Support
Scale 4X4, 4X8, 4X12 Source Switching Response  ≤20ms
Input 3840x 2160 60Hz, chroma sampling 4:4:4 Window Creating Response ≤16ms
Output 3840x 2160 60Hz, chroma sampling 4:4:4 Scenario Recalling Response ≤16ms
Functionality PIP,overlay, zooming and roaming Dimensions (mm) 483(L) x 44(H)x 406(D)
Audio All ports support embedded audio
1x 3.5mm mini-jack auido output
1st HDMI input port supports eARC
Supports audio volume adjust
Operating Temperature minus 10° to +40° C
Preview (Optional) Preview input contents and virtual video wall display Storage Temperature minus 10° to 70° C
Control TCP/IP or RS232 Operating Humidity 10% to 85%, Non-condensing
  PC software, iOS App and Android App Storage Humidity 10% to 90%, Non-condensing
EDID Support MTBF 100,000 hrs

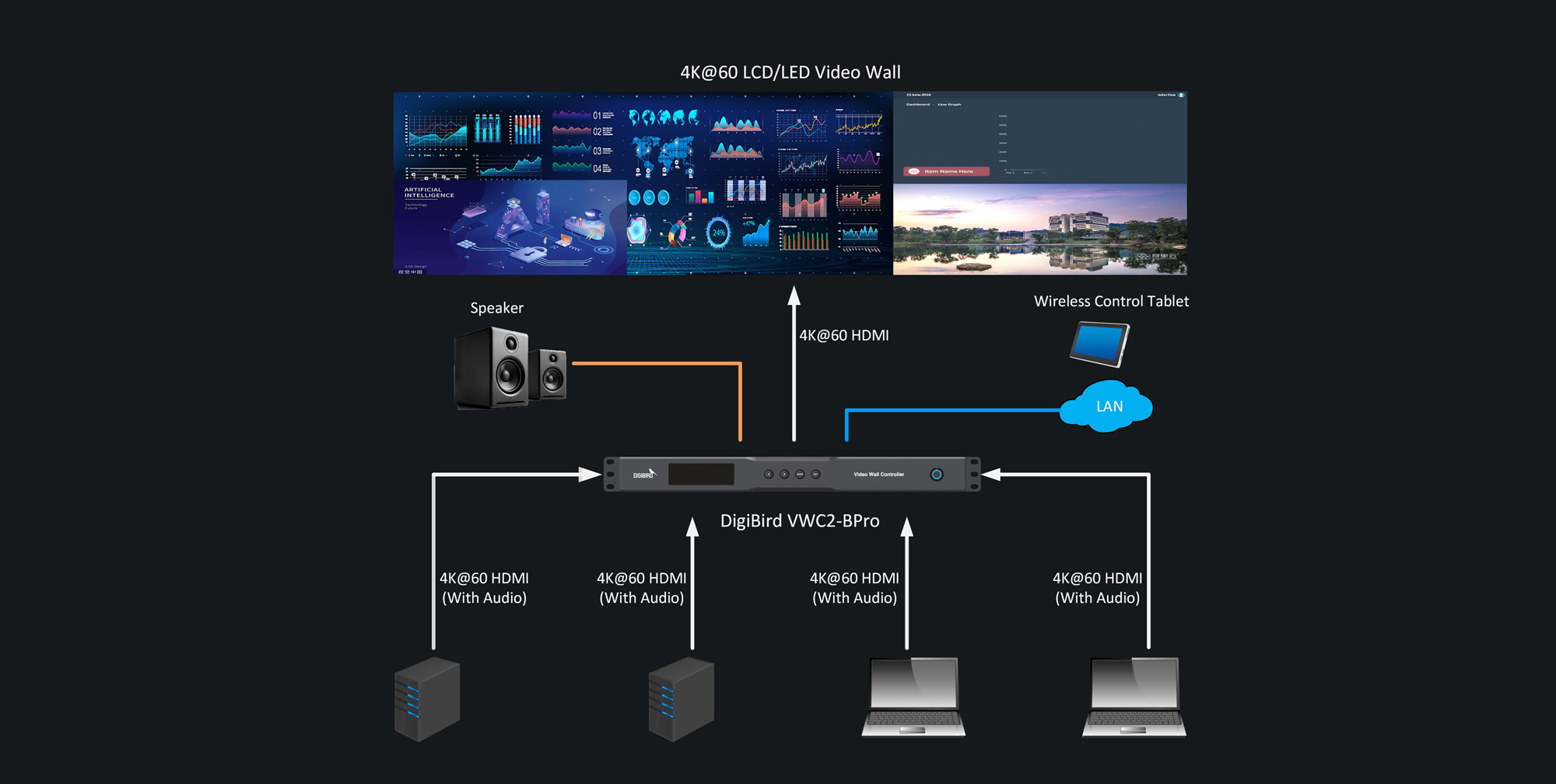

DIAGRAM

DOWNLOAD

Datasheet_VWC2-BPro

0.14M

2021/06/21
