Hardware-based FHD Video Wall Controller

The industries best-choice video wall controller

VWC2-M4 Series

Hardware-Based FHD Controller

VWC2-M4 Series is hardware based FHD video wall controller. Flexible video wall displays and high reliability ensures it the best-fit solutions for mission critical applications.

  • Live Preview

  • PIP & Overlay

Live Preview

With tailored GUI, DigiBird App and web-client allows operator to view the input source and video wall display in real time, and manage display through simple drag-and-drop operation.

iPad control-video wall controller

Compatible with CCTV

Supports arbitrary layering, zooming in/out, stretching and picture in picture
Compatible with IPC camera to display stream directly to video wall.

DigiBird Video wall controller Compatible with CCTV System

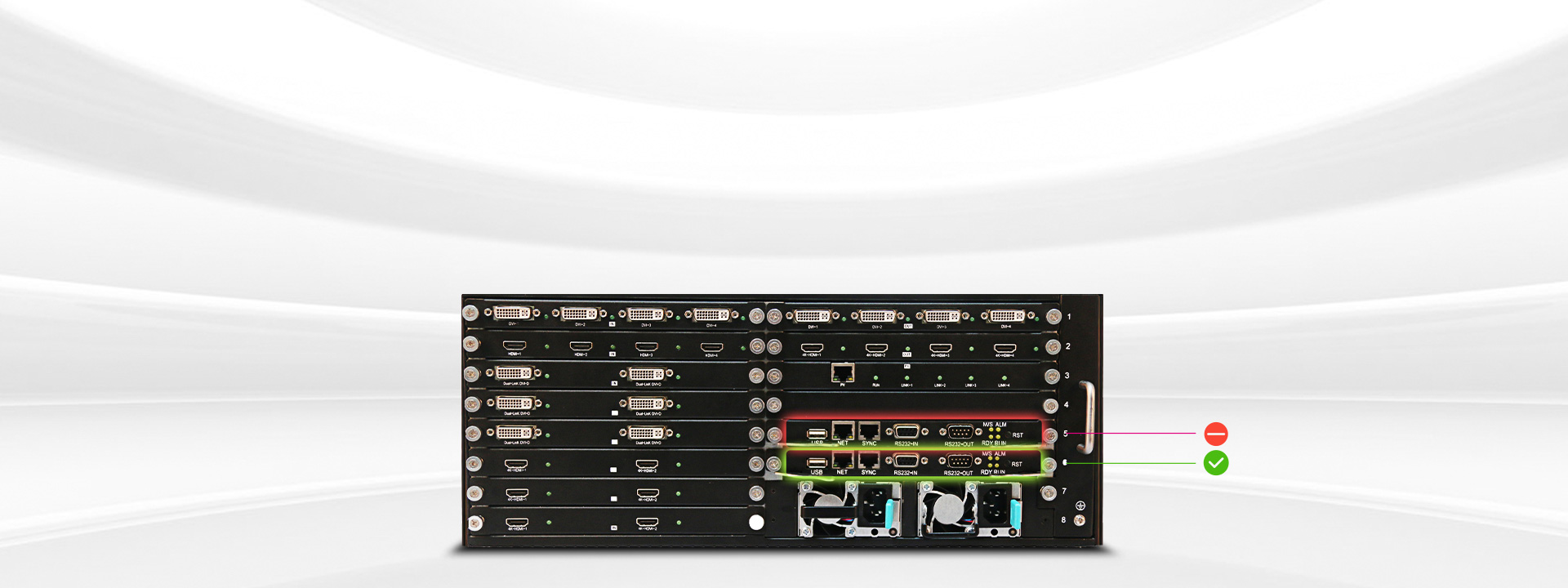

Dual Control Cards

Auto switching backup, keep operating without any interruption. Keep running the current preset even both cards breaking down or swapped out.

Dual Control Cards

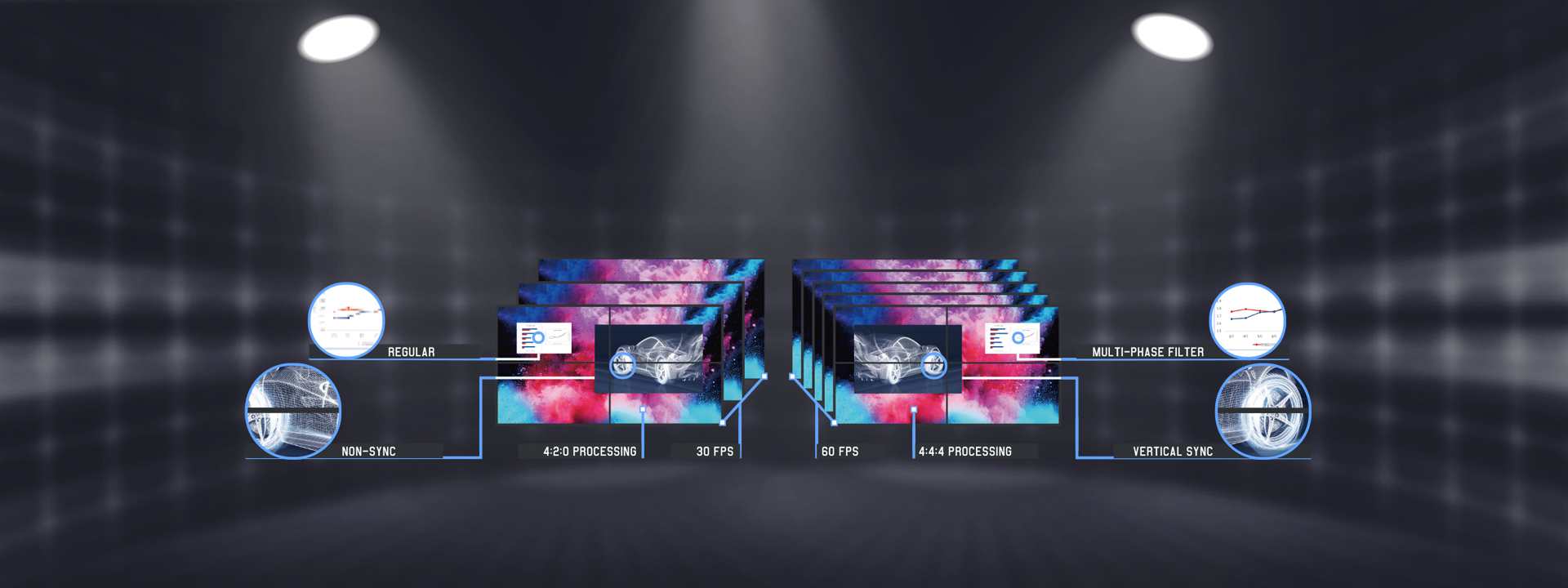

Unmatched Performance

Applied stepless zooming, vertical sync and 4:4:4 processing, VWC2-M4 has industry leading performance to offer visually
loseless experience.

Specified User Access

Administrator is capable to authorize certain users specific access for video wall management,
i.e. specific input, display area and functions, etc.

User Access Management based on user roles

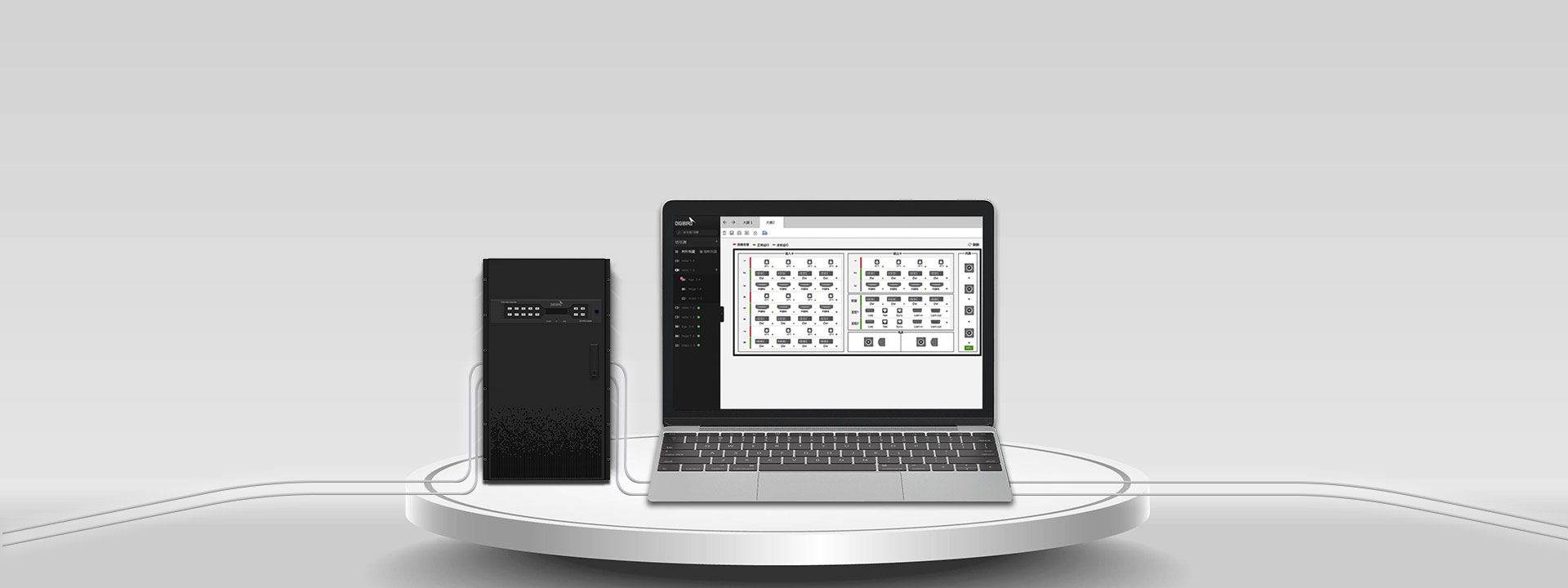

Status Monitoring

Real-time status monitoring: hardware info, firmware info, temperature, operating info and auto-adjusted fan speed, etc.

Live Status Monitoring of video wall controller
  • Multiple VW Groups

  • Background Image

  • Active & Negative 3D

  • Scrolling Text











SPECS

Size:

Description:

Input Cards

Output Cards

PSUs

3U

3U Chassis, up to 6x input cards, 2x output cards.

6

2

1+0

4U

4U Chassis, up to 8x input cards, 3x output cards.

8

3

1+1

6U

6U Chassis, up to 14x input cards, 5x output cards.

14

5

1+1

8U

8U Chassis, up to 15x input cards, 10x output cards.

15

10

1+1

14U

14U Chassis, up to 21x input cards, 18x output cards.

21

18

1+3

26U

26U Chassis, up to 42x input cards, 36x output cards.

42

36

1+3



Input Card

Description:

Resolution:

4 channels SL-DVI input card.

Up to1920x1200/60Hz

2 channels 4K DL-DVI input card.

Up to 3840×2160/30Hz

4 channels HDMI input card.

Up to 1920×1200/60Hz

2 channels 4K HDMI input card.

Up to 3840×2160/30Hz

4 channels DP input card.

Up to 1920×1200/60Hz

2 channels 4K DP input card.

Up to 3840×2160/30Hz

4 channels HDBT input card.

Up to 1920×1200/60Hz

2 channels 4K HDBT input card.

Up to 3840×2160/30Hz

4 channels SDI input card.

Up to 1920×1080/60Hz

4 channels YPbPr input card.

Up to 1920×1080/60Hz

4 channels VGA input card.

Up to 1920×1200/60Hz

2 channels H.265 IP input card.

Up to 4000×3000/25Hz

2 channels 4K H.265 IP input card.

Up to 4000×3000/25Hz

4 channels Fiber HD input card.

Up to 1920×1200/60Hz

2 channels Fiber 4K input card.

Up to 3840×2160/30Hz

4 channels AVCNet input card

Up to 1920×1200/60Hz

2 channels 4K AVCNet input card

Up to 3840×2160/30Hz

8 channels audio input & output card



4 channels CVBS input card.

Up to 720×480/720×576











Output Card

Description:

Resolution:

4 channels SL-DVI output card.

Up to 1920×1200/60Hz

4 channels HDMI output card.

Up to 1920×1200/60Hz

4 channels DP output card.

Up to 1920×1200/60Hz

4 channels HDBaseT output card.

Up to 1920×1200/60Hz

4 channels SDI output card.

Up to 1920×1080/60Hz

4 channels HDMI output card.

Up to 1920×1200/60Hz

1 channel 4K HDMI output card, 16 layers.

Up to 3840×2160/30Hz

4 channels DVI output card.

Up to 1920×1200/60Hz

4 channels J-series HDBaseT output card.

Up to 1920×1200/60Hz

4 channels VGA output card.

Up to 1920×1200/60Hz

1 channel IP output card.

1080P/30Hz

4 channels AVCNET output card.

Up to 1920×1200/60Hz

1 channel IP Network Preview card.

/













Function Cards

Description:

Resolution:

4 channels DVI Confidence Monitoring Card

Up to 1920×1200/60Hz

Control Card

/

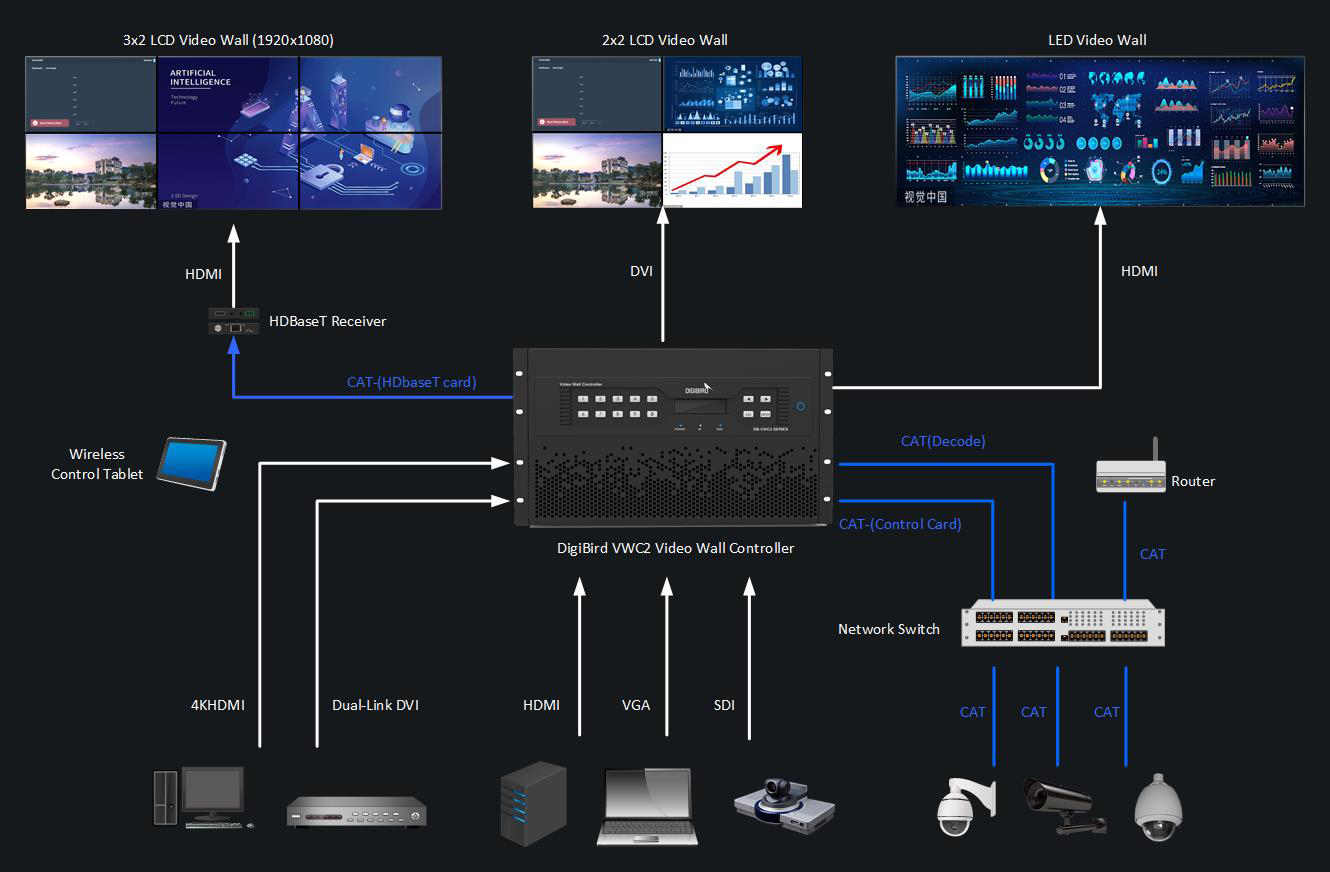

DIAGRAM

DOWNLOAD

VWC2-M4 Brochure

7.25M

2020/11/30

Command Protocol-VWC2-V1

0.23M

2020/12/31

User Guide- Brief version- VWC2-V1

2.61M

2020/12/31

Hardware Profile

5.61M

2021/01/19

Card Manual_VWC2-M4

1.59M

2021/01/19
