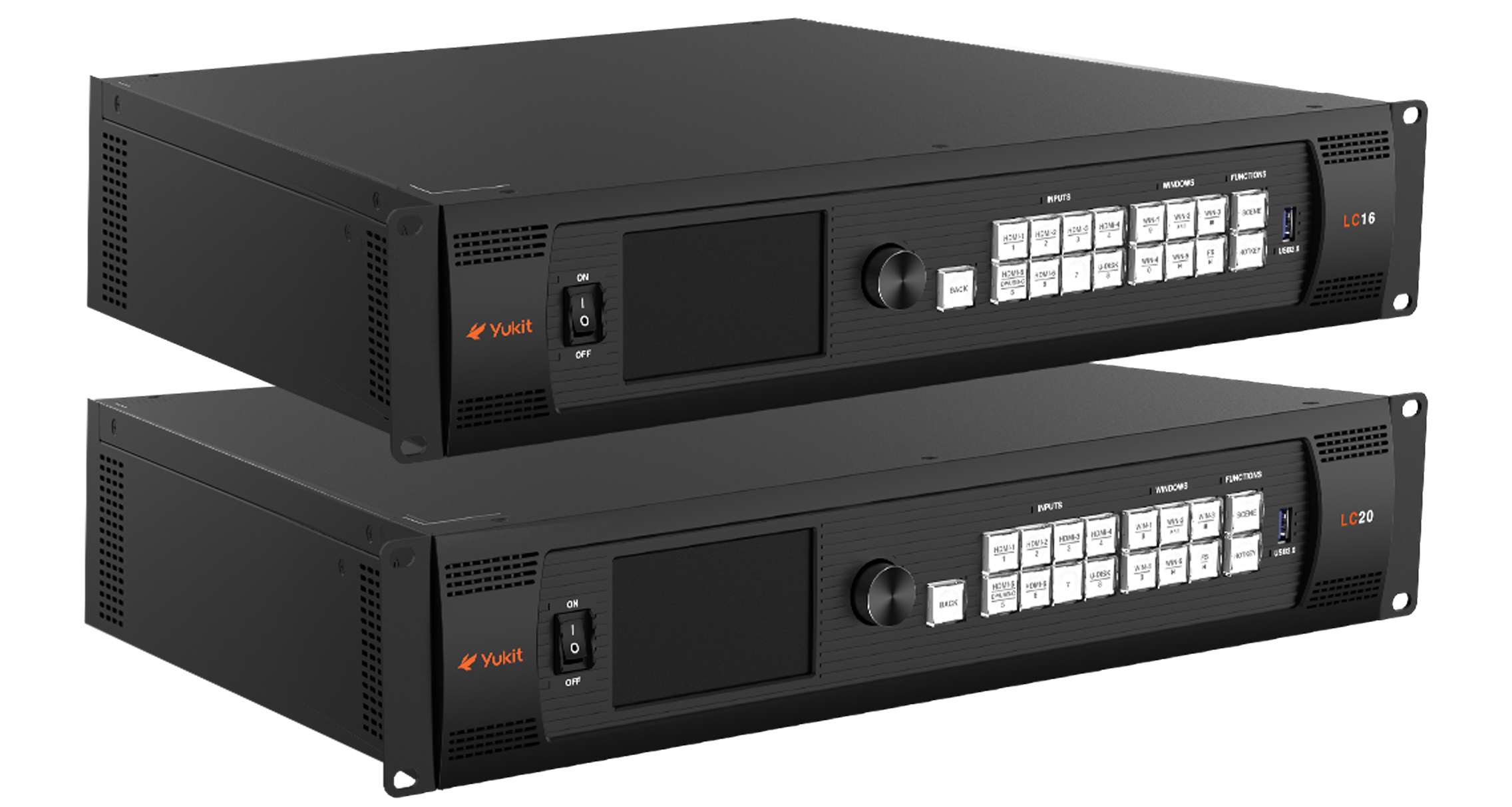

All-in-One LED Controller
Integrated Processing and Sending for Dazzling Visuals
Integrated Processing and Sending for Dazzling Visuals

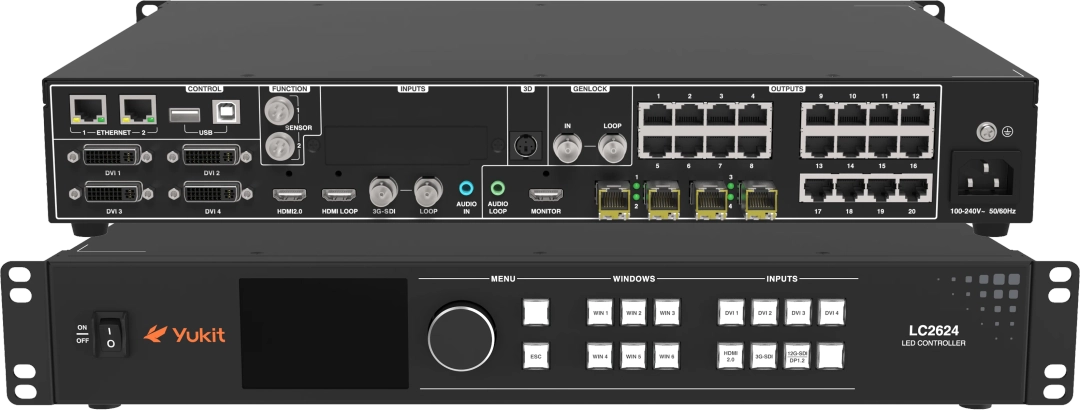

Integrating processing and transmission modules, this dual-function LED controller boasts outstanding processing power, heavy-load support and streamlined operation, compatible with all LED displays. Optimized for exhibitions, live events and conferences, it consistently delivers stunning immersive visuals.
Supports multi-terminal visualized operation to break device limitations.
Operators can preview the video wall status in real time with an intuitive and efficient layout.
Supports 12-layer roaming and overlay to boost screen information capacity. All key dynamic scenarios can be viewed on a single screen.
Equipped with an extended HDMI 2.1 interface, it supports the access, processing and display of 8K signals.

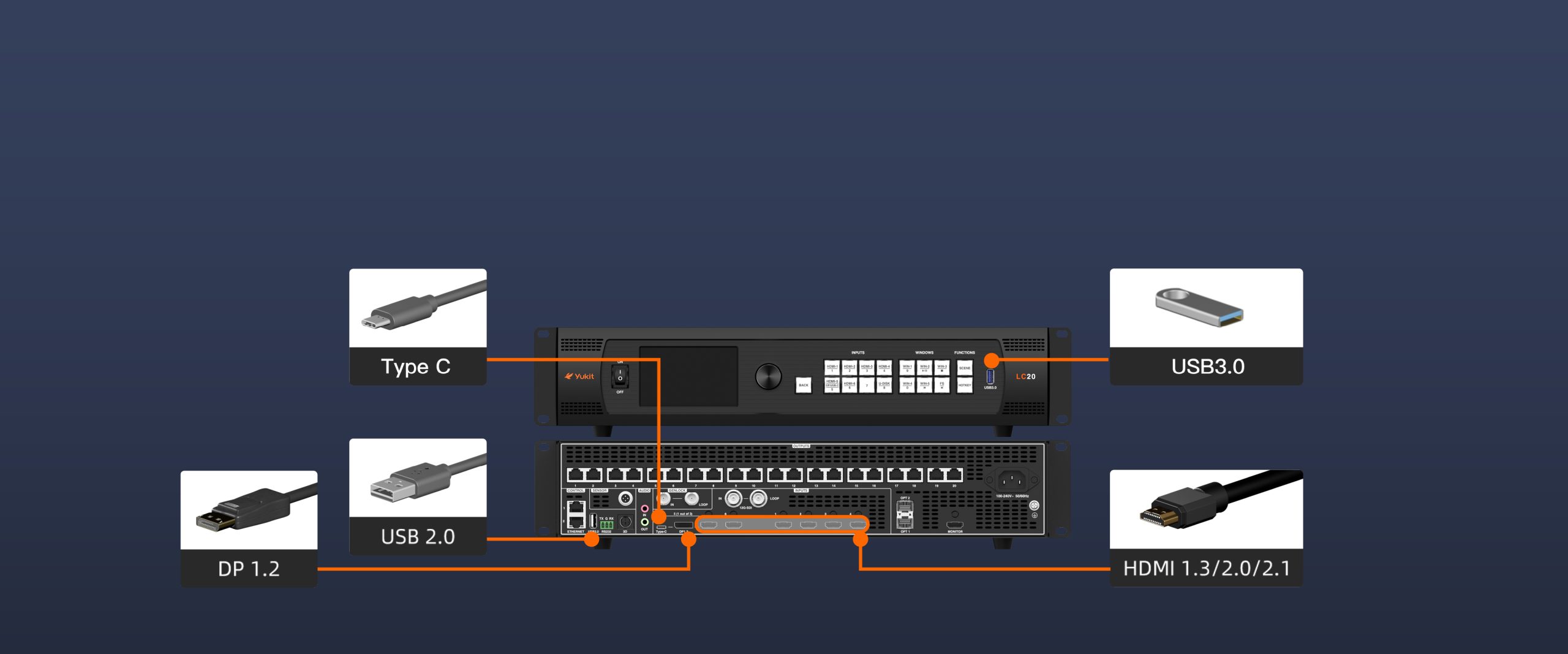

Covering HDMI 2.1, HDMI 2.0, HDMI 1.3, DP 1.2, Type-C and USB 3.0 interfaces,
it handles both HD video playback and high-speed data reading effortlessly.
Equipped with a high-speed USB 3.0 interface, it features plug-and-play for large files,
allowing easy playback and presentation of ultra HD videos, lossless audio, and various images.
Full-scene 3D display delivers distinct layered visuals and an immersive viewing experience.

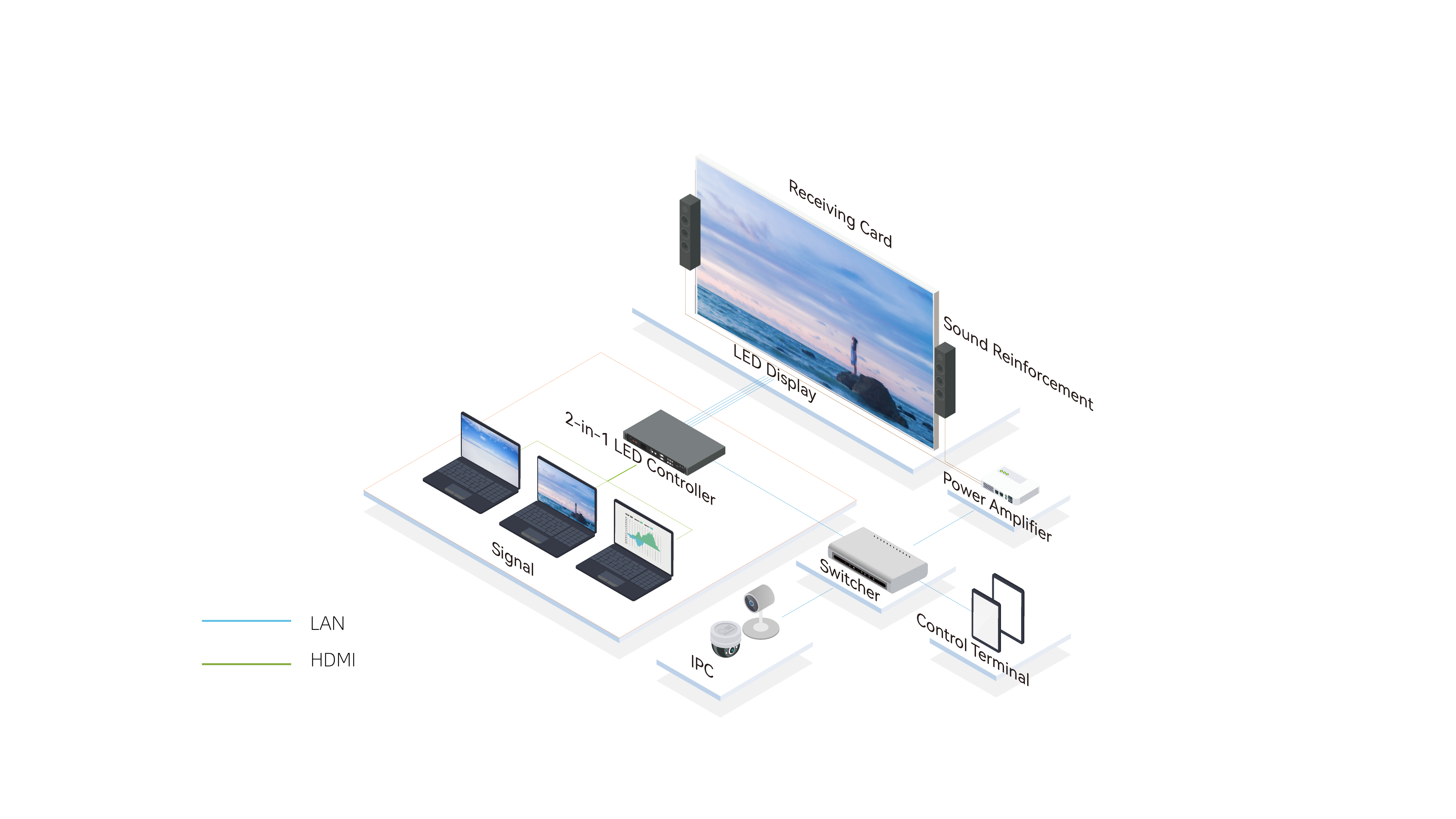

Integrates 2-in-1 LED controller functionality, it can also be configured as either a sending controller or a media converter.
HDR10 presents balanced highlights and shadow details for lifelike light performance.
Finely tuned color and contrast ensure vivid, crystal-clear visuals.
|
Features |
LC1102 |
LC1105 |

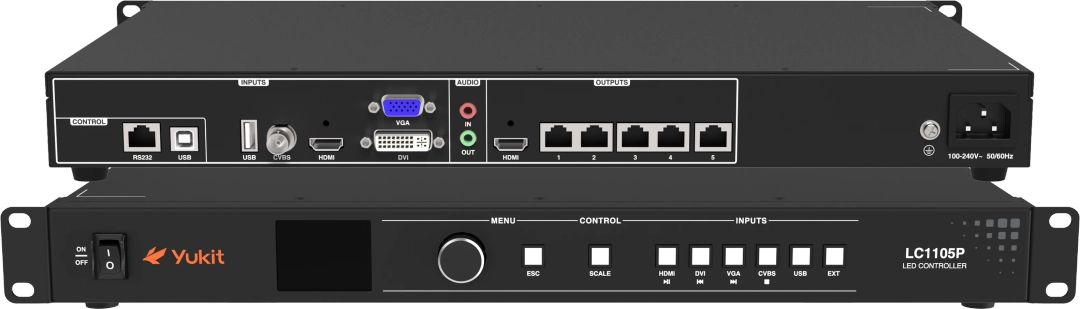

LC1105P |
LC1306 |
LC1308 |
LC1310 |

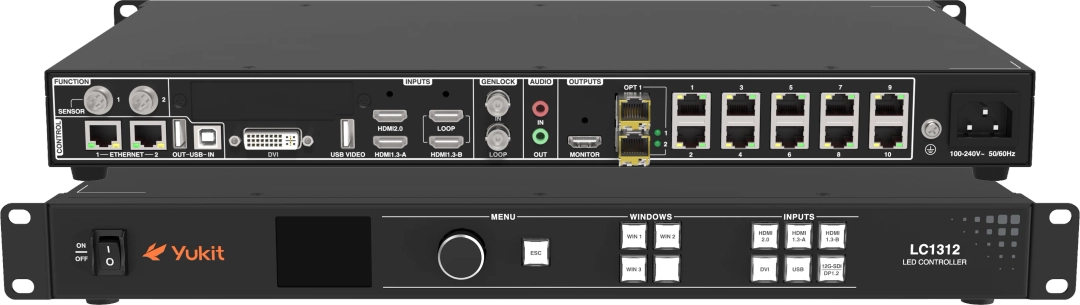

LC1312 |
LC2620 |
LC2620P |
LC2624 |
|
Layers |
1 |
1 |
1 |
3 |
3 |
3 |
3 |
6 |
6 |
6 |
|
Ethernet Ports |
2 |
5 |
5 |
6 |
8 |
10 |
12 |
20 |
20 |
24 |
|
Fiber Ports |
/ |
/ |
/ |
2 |
2 |
2 |
/ |
4 |
4 |
/ |
|
Load Capacity |
1.3M |
2.3M |
3.25M |
3.9M |
5.2M |
6.5M |
7.80M |
10.4M |
13M |
15.6M |
|
Max Width |
3840 |
3840 |
4096 |
10240 |
10240 |
10240 |
10240 |
16384 |
16384 |
16384 |
|
Max Height |
2160 |
2160 |
4096 |
8192 |
8192 |
8192 |
8192 |
8192 |
8192 |
8192 |
|
Input Interface |
DVI ×1, HDMI ×1, VGA x1, CVBS x1, USB x1, AUDIO x1 |
Standard : HDMI 2.0 x1, HDMI 1.3 x1, USB x1, DVI x1 Optional: PV Preview x1 [12G-SDI (+Loop) or DP 1.2] x1 (either with standard DVI Interface) |
Standard: HDMI 2.0 x1 (+Loop), DVI x4, 3G-SDI x1 (+Loop) Optional: PV Preview x1 [12G-SDI (+Loop) or DP 1.2] x1 |
|||||||
|
4K@60 |
× |
× |
× |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
Stepless Zoom |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
Multiple Video Wall Groups |
× |
× |
× |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
OSD Logo |
× |
× |
× |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
Screen Monitor |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
Live Preview |
× |
× |
× |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
Multi Control Methods |
× |
× |
× |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
Parameters |
LC16 |
LC20 |
LC24* |
LC32* |
LC40* |
|
Layers |
12 |
12 |
12 |
12 |
12 |
|
Ethernet Ports |
16 |
20 |
24 |
32 |
40 |
|
Fiber Ports |
4 |
4 |
4 |
4 |
4 |
|
Load Capacity |
10.4M |
13M |
15.6M |
20.8M |
26M |
|
Max Width |
16384 |
16384 |
16384 |
16384 |
16384 |
|
Max Height |
8192 |
8192 |
8192 |
8192 |
8192 |
|
Input Interface |
Standard: HDMI 2.0 ×1 [HDMI 2.0/DP 1.2/Type-C] ×1 HDMI 1.3 ×4 USB 3.0 ×1 Optional: 12G-SDI ×1 |
Standard: HDMI 2.0 ×1 HDMI 2.0 ×1 (+Loop) [HDMI 2.0/DP 1.2/Type-C] ×1 HDMI 1.3 ×4 USB 3.0 ×1 Optional: 12G-SDI ×1 HDMI 2.1 ×1 |
|||
*To be launched
