Economic Video Wall Controller

Perfect balance between capabilities and budget

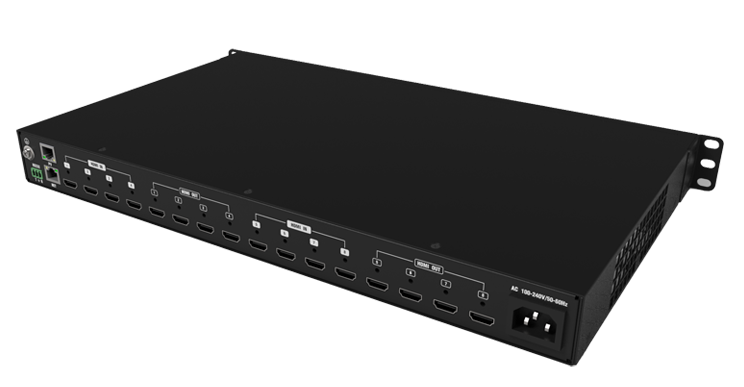

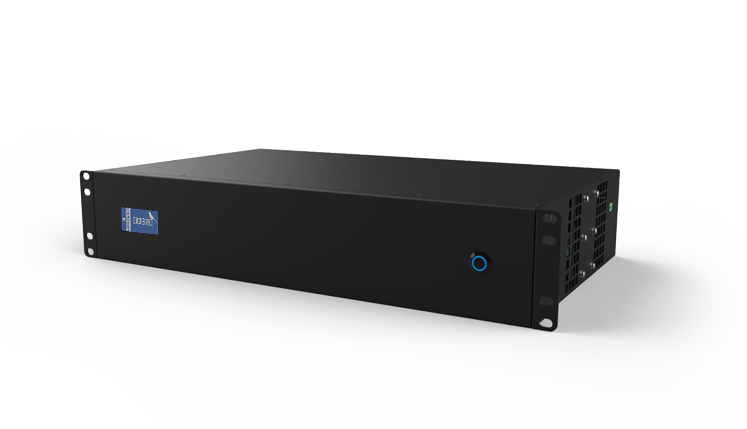

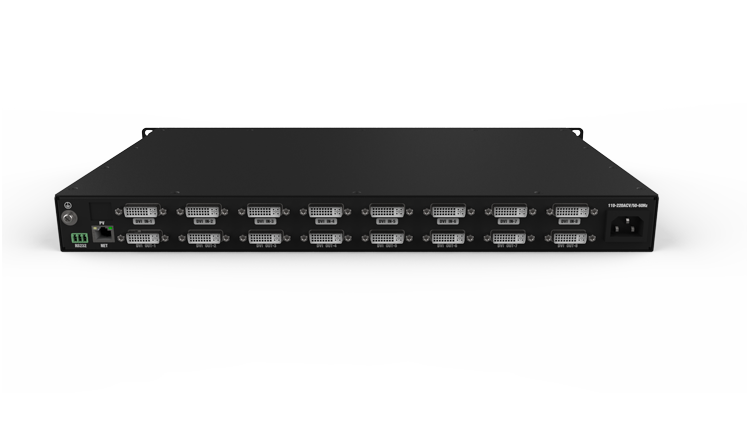

VWC2-B Series

Compact Video Wall Controller

VWC2-B is a hardware-based and cost-effective video wall controller, which is the best choice to showcase video contents in a simple control room, meeting room or a digital signage with its user friendly interface and easy deployment features.

  • Live Preview

  • PIP & Overlay

Flexible Layout

Display input sources to anywhere of video wall with any size. PIP, overlay, resizing and roaming are supported.

video wall controller-video wall processor-hardware based video wall controller-DigiBird

Live Preview

With tailored GUI, DigiBird App and web-client allows operator to view the input source and video wall display in real time, and manage display through simple drag-and-drop operation.

iPad Control and Live Preview

Unmatched Performance

Applied stepless zooming, vertical sync and 4:4:4 processing, VWC2-B has industry leading performance to offer visually
loseless experience.

Specified User Access

Administrator is capable to authorize certain users specific access for video wall management,
i.e. specific input, display area and functions, etc.

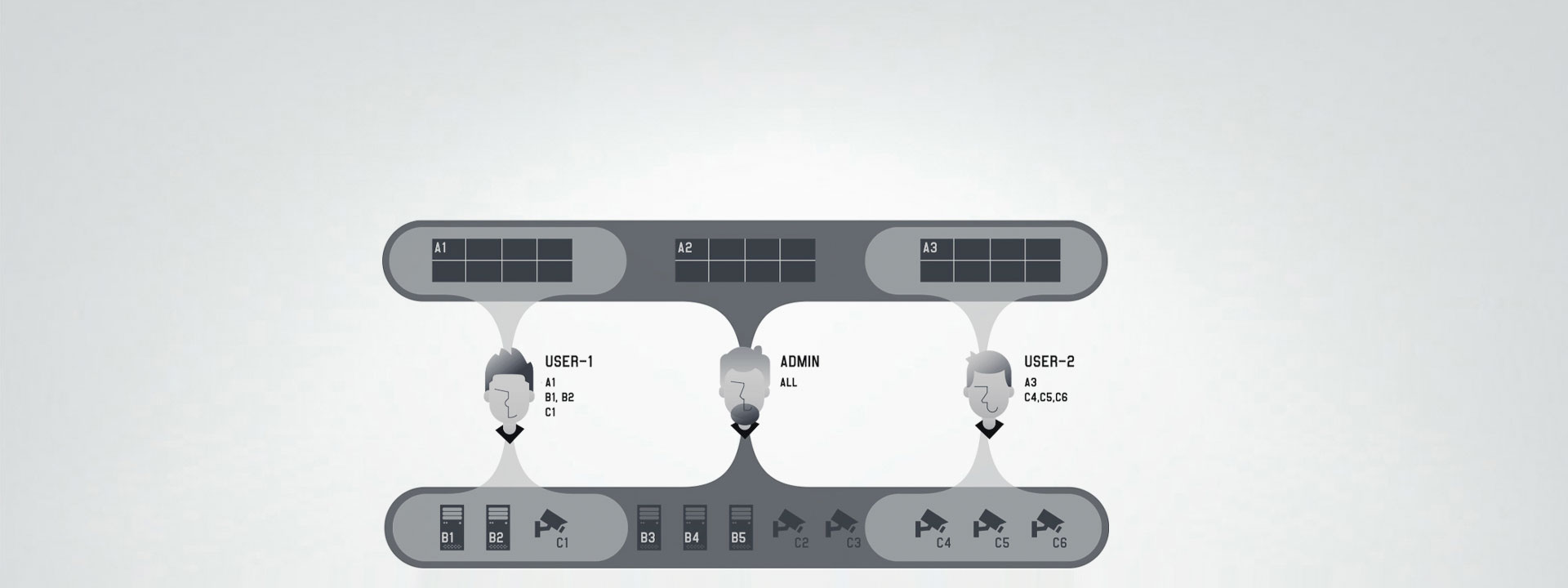

User Access Management based on user roles





SPECS

Order Code: Size: Description: Port Type
DB-VWC2-B-4D4D-PV 1U B series 4x DVI input, 4x DVI output video wall controller, with built-in preview DVI
DB-VWC2-B-4D8D-PV 1U B series 4x DVI input, 8x DVI output video wall controller, with built-in preview DVI
DB-VWC2-B-8D8D-PV 1U B series 8x DVI input, 8x DVI output video wall controller, with built-in preview DVI
DB-VWC2-B-4D12D-PV 2U B series 4x DVI input, 12x DVI output video wall controller, with built-in preview DVI
DB-VWC2-B-4H4H-PV 1U B series 4x HDMI input, 4x HDMI output video wall controller, with built-in preview HDMI
DB-VWC2-B-4H8H-PV 1U B series 4x HDMI input, 8x HDMI output video wall controller, with built-in preview HDMI
DB-VWC2-B-8H8H-PV 1U B series 8x HDMI input, 8x HDMI output video wall controller, with built-in preview HDMI
DB-VWC2-B-4H12H-PV 2U B series 4x HDMI input, 12x HDMI output video wall controller, with built-in preview HDMI

Note: Maximum 8x windows per display, and 16x windows per video wall.









DIAGRAM

DOWNLOAD

VWC2-B Window-based Software V6.4.14

8.54M

2020/11/30

Command Protocol-VWC2-V1

0.23M

2020/12/31

Control Software User Guide_VWC2-B

1.92M

2021/03/16

VWC2-B Hardware Profile

3.69M

2021/01/19

VWC2-B Brochure

1.49M

2021/03/16
