Yukit LED Control System

UniLic series is an intelligent LED control system, including LED sending cards/controllers, receiving cards, 2-in-1 LED controllers and LED video processors. The system is designed to deliver unparalleled performance for LED display in various applications, such as control rooms, meeting rooms, events, and exhibitions.

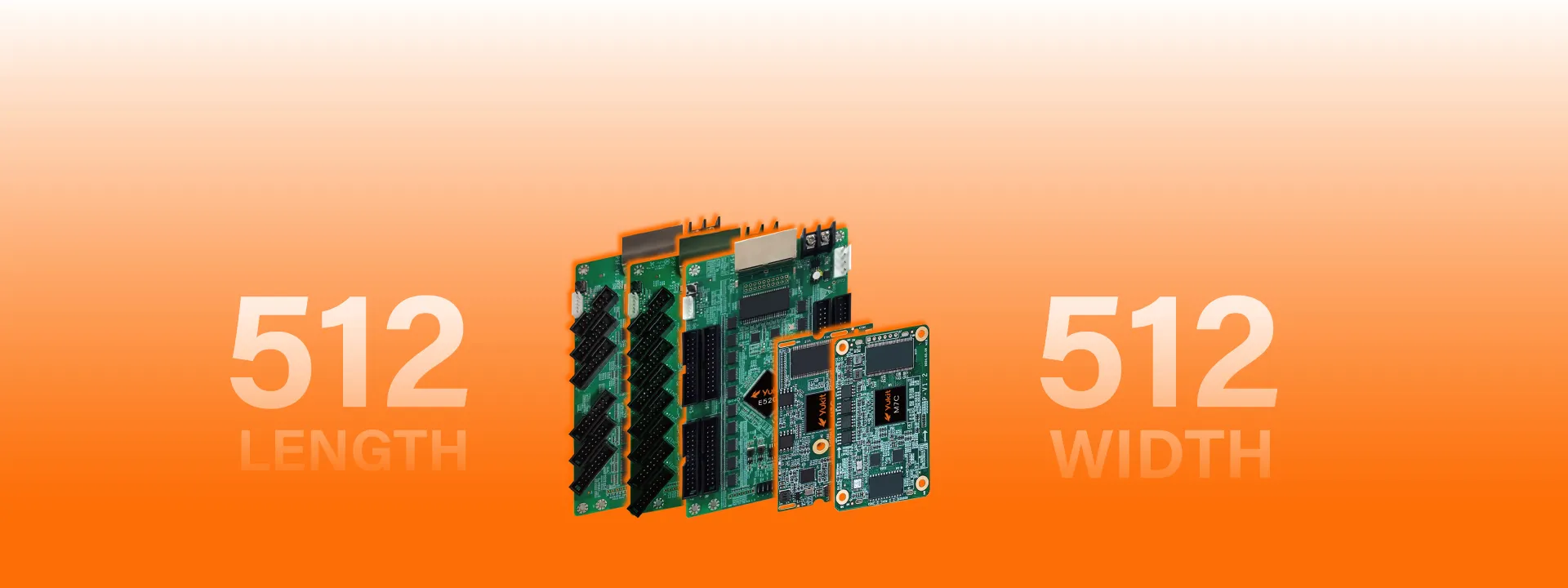

Large load capacity

Support resolution up to 512× 512 pixels and 32 groups parallel RGB data.

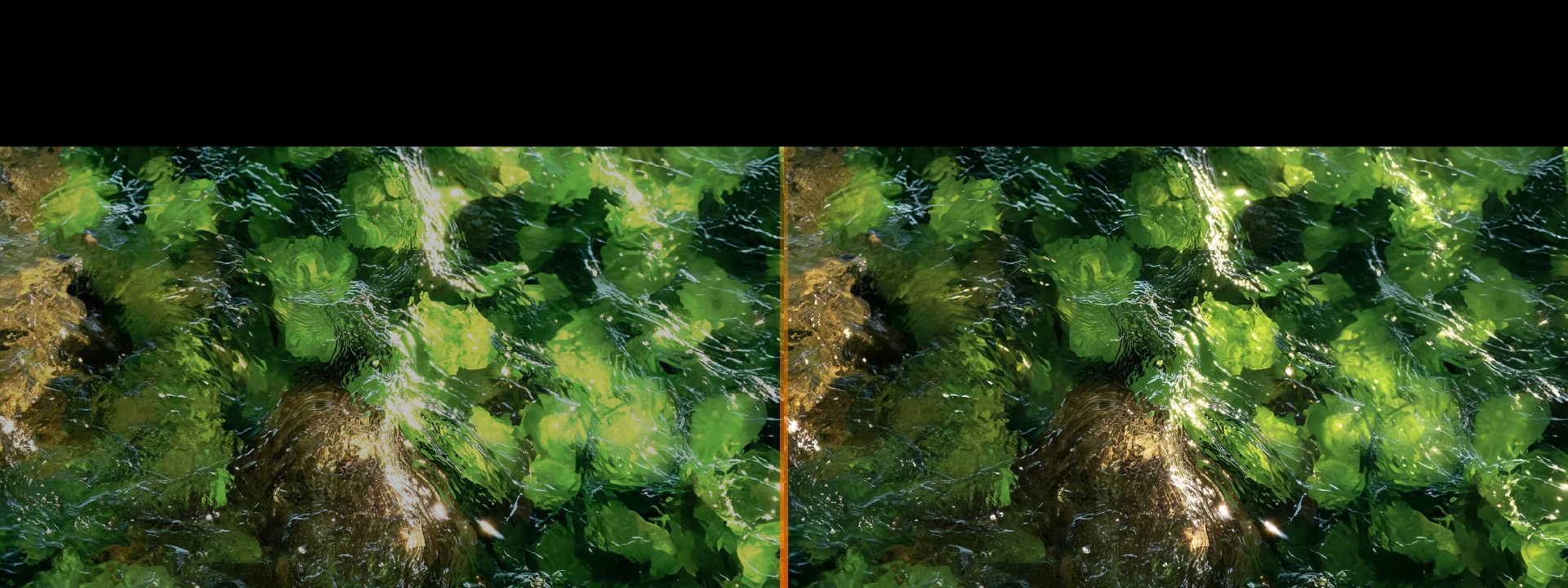

True color HDR engine

Fully compatible with HDR10, delivers wider color gamuts and higher contrast ratios for a truly immersive cinematic experience.

Pixel-Perfect uniformity

Pixel-level brightness & chroma calibration across the entire display guarantees perfect visual uniformity.

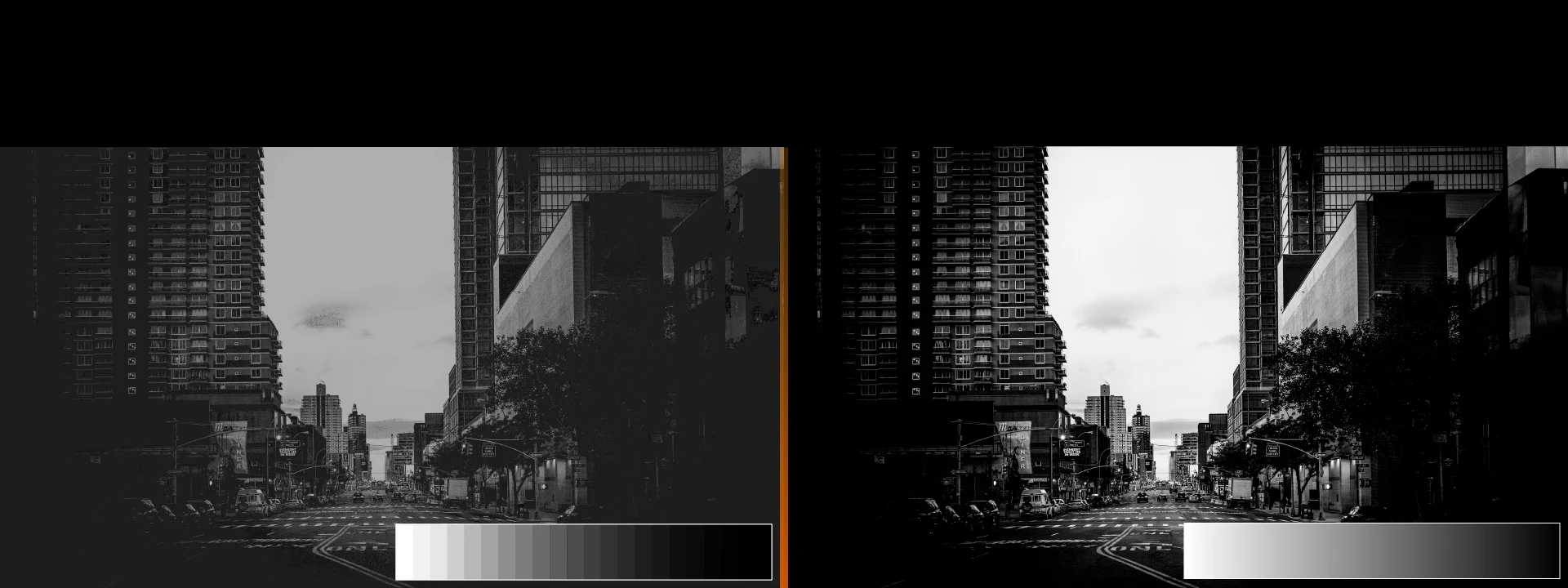

Perfect gray scale. From foundation to intelligence

Experience breathtaking detail even at low brightness levels based on our NBIT technology and PWV algorithm.

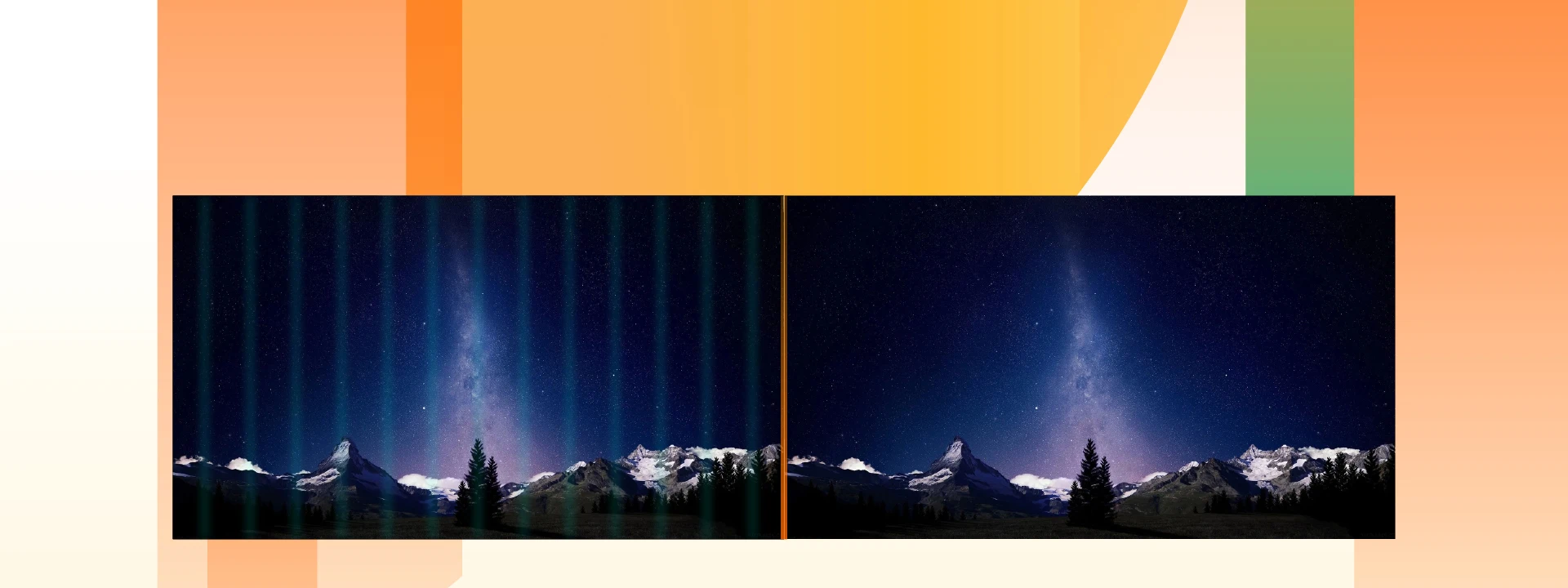

Intelligent splicing & seam Fine-Tuning

Eliminate visible brightness seams between LED modules or cabinets. Our system allows for simple, precise adjustment of these edge lines, transforming multiple panels into a perfectly uniform canvas of light.

3D function, exceptional visual experience

Theater-grade 3D: Pair with our processors and active glasses for a truly immersive stereoscopic experience.

Creative display with multi-angle rotation

Unleash your creation with 90°/180°/270°image rotation. Offering maximum flexibility for architectural design.

Thermal expansion compensation

Corrects color and brightness inconsistencies caused by heat. Our system captures thermal data and applies pixel-level compensation to ensure uniform display performance.

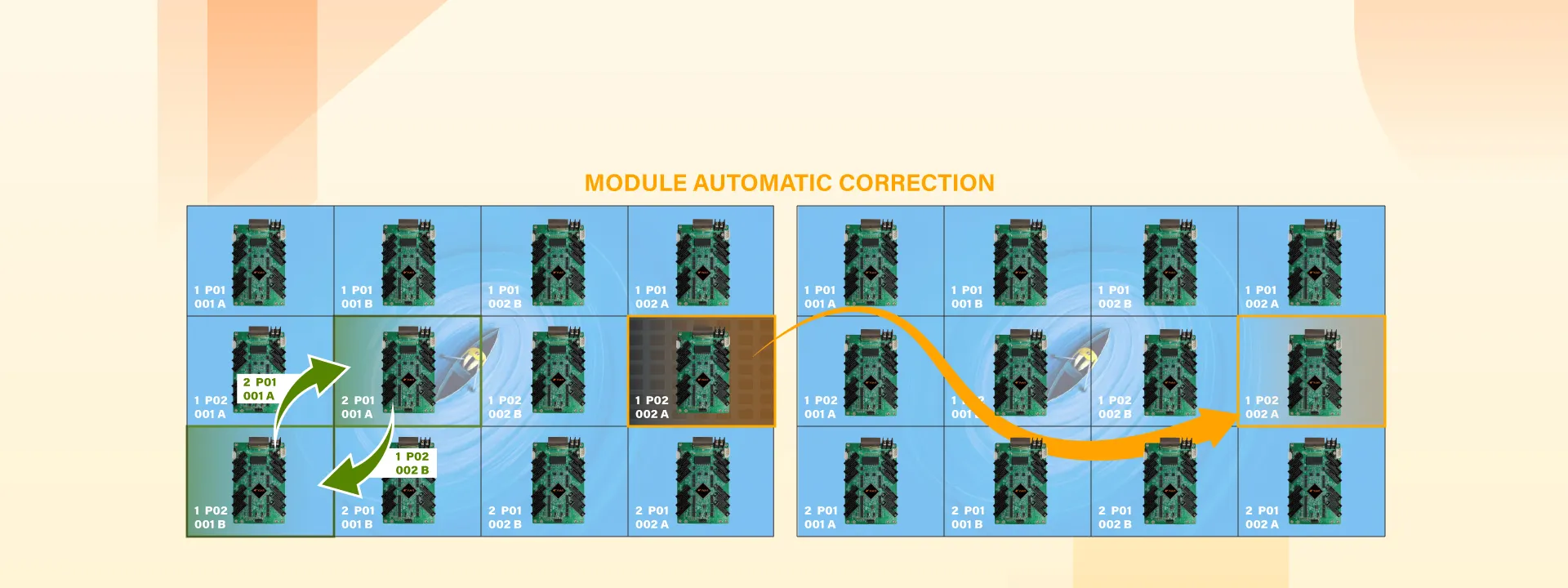

Intelligent mapping & Module automatic correction

Break free from fixed installation sequences and simplify your workflow with "Plug & Play" module replacement.

Self monitoring. Smart module.

Support real-time monitoring of each module's critical parameters, including temperature, voltage, and communication link status. Instant abnormal alarms ensure operational reliability.

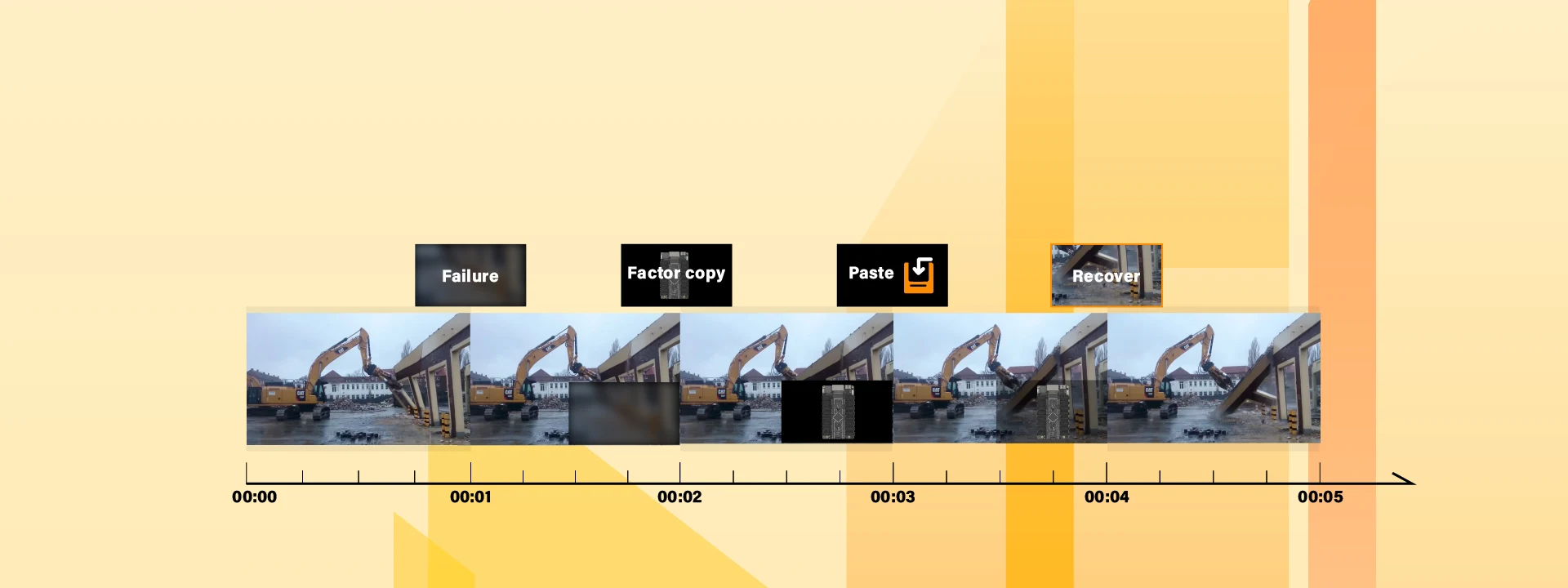

One-Click configuration read-back

Rapidly clone settings for effortless mass restoration and deployment.

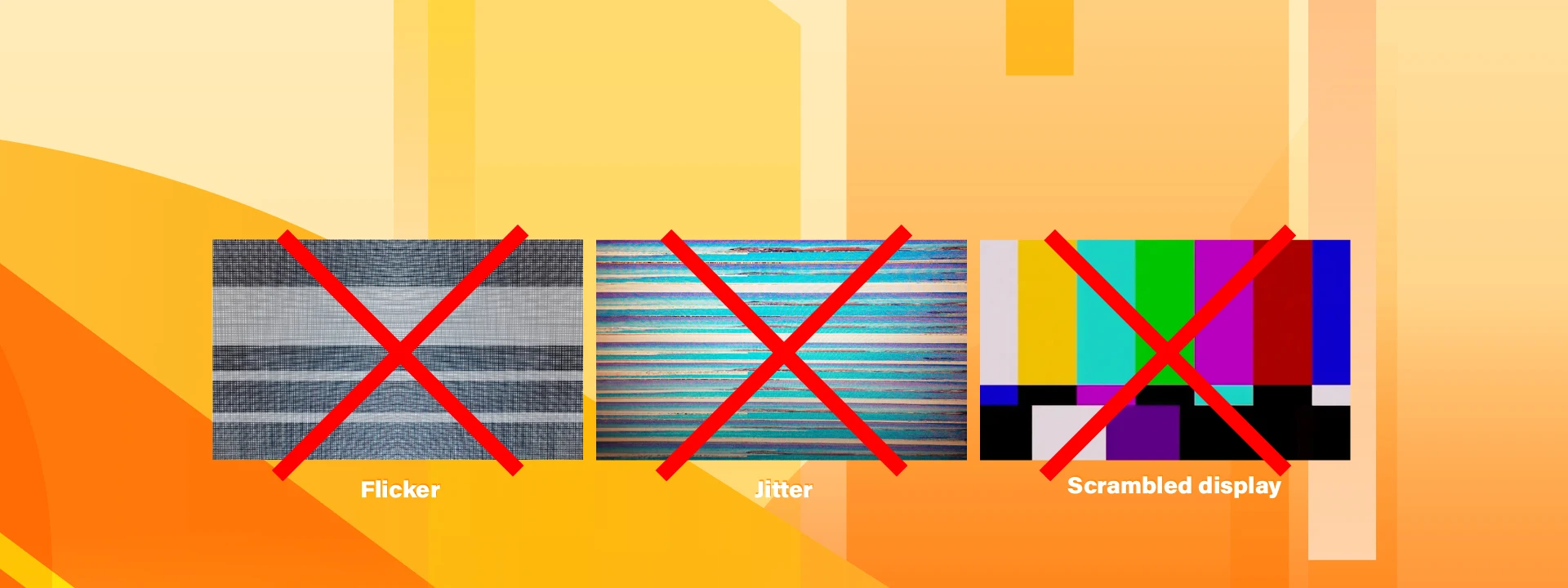

High-Speed LVDS transmission technology

Uses Low-Voltage Differential Signaling for robust data transfer. It delivers higher signal quality for reliable operation.

Multiple data redundancy & Loop backup

Loop, configuration parameter and dual card backups—full fail-safe for display-control data, path & program.

SPECS

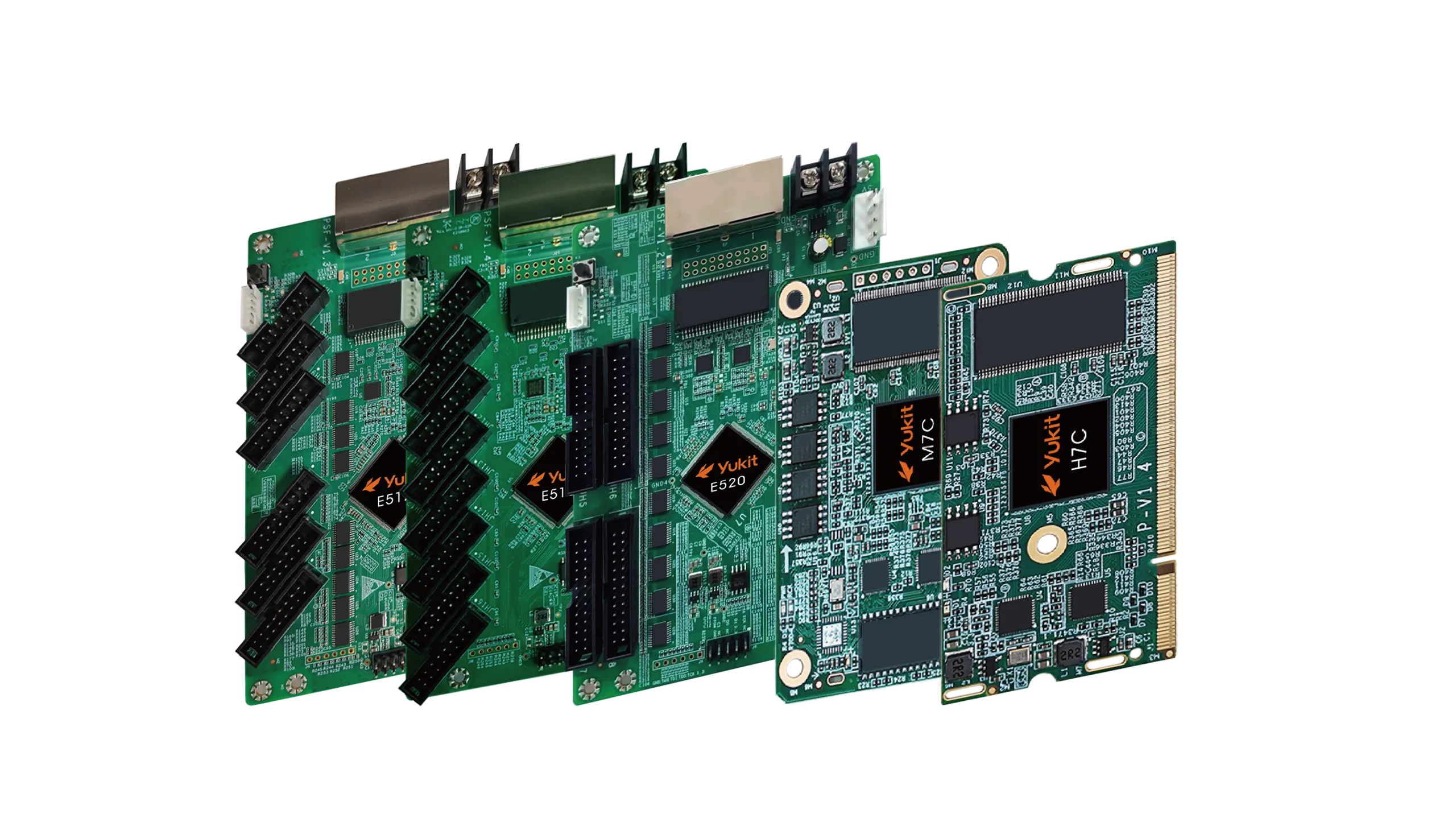

Features LR-E Series LR-M Series LR-H Series
E508S E512 E516 E520 M5 M7 M7c M8 H5 H7 H7c H8
Load 512 x 512 512 x 512 512 x 512 512 x 512 512 x 384 512 x 512 512 x 512 512 x 512 512 x 384 512 x 512 512 x 512 512 x 512
Interface HUB75 HUB320 120pin High-Density Connector 200pin DDR2 SODIMM
Pixel-Level Correction Brightness Correction Brightness and Chroma Correction
Precise Grayscale Adjustment ○ ○ ○ ○ ○ ● ● ● ○ ● ● ●
Color Management ● ● ● ● ● ● ● ● ● ● ● ●
Indepedent Gamut Adjustment ● ● ● ● ● ● ● ● ● ● ● ●
HDR ○ ○ ○ ○ ○ ● ● ● ○ ● ● ●
Configuration
Readback		 ● ● ● ● ● ● ● ● ● ● ● ●
Pixel-level
Seam Correction		 ● ● ● ● ● ● ● ● ● ● ● ●
90 Degree Rotation ● ● ● ● ● ● ● ● ● ● ● ●
3D ● ● ● ● ● ● ● ● ● ● ● ●
Thermal Expansion Compensation ○ ○ ○ ○ ● ● ● ● ● ● ● ●
Auto Calibration ○ ○ ○ ○ ● ● ● ● ● ● ● ●
Self Monitoring ● ● ● ● ● ● ● ● ● ● ● ●
Enable/Disable Calibration ● ● ● ● ● ● ● ● ● ● ● ●
Loop Backup ● ● ● ● ● ● ● ● ● ● ● ●
Parameter
Backup		 ● ● ● ● ● ● ● ● ● ● ● ●
Dual-card
Redundancy		 ○ ○ ○ ○ ● ● ● ● ● ● ● ●
LVDS Transmission ○ ○ ○ ○ ○ ○ ○ ● ○ ○ ○ ●
