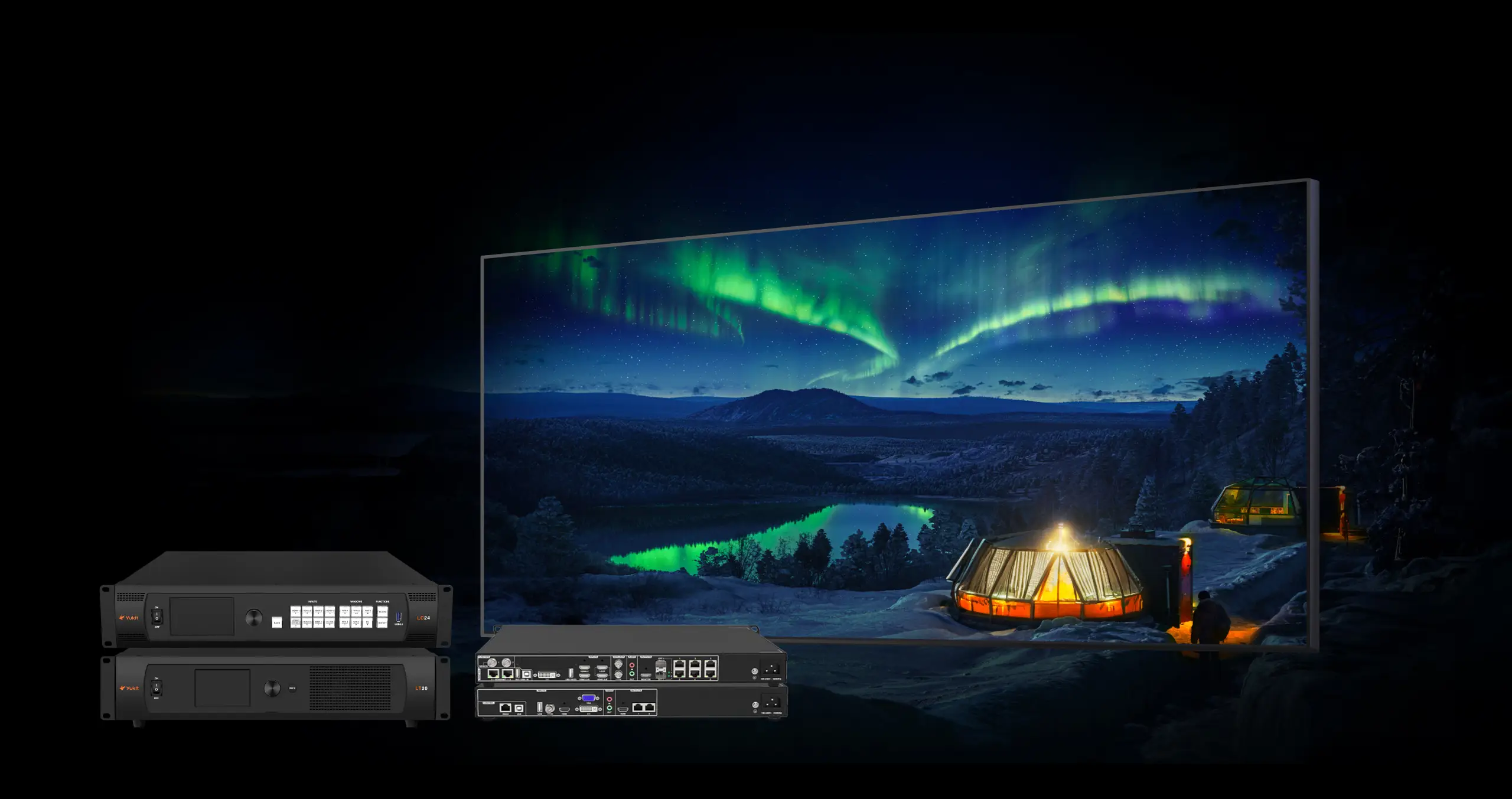

Yukit LED Control System

Yukit Sending Controllers are divided into LT Series ( sending controllers) and LC Series (2-in-1 LED controllers).
LT sending controllers are engineered for stable, high-quality signal transmission.

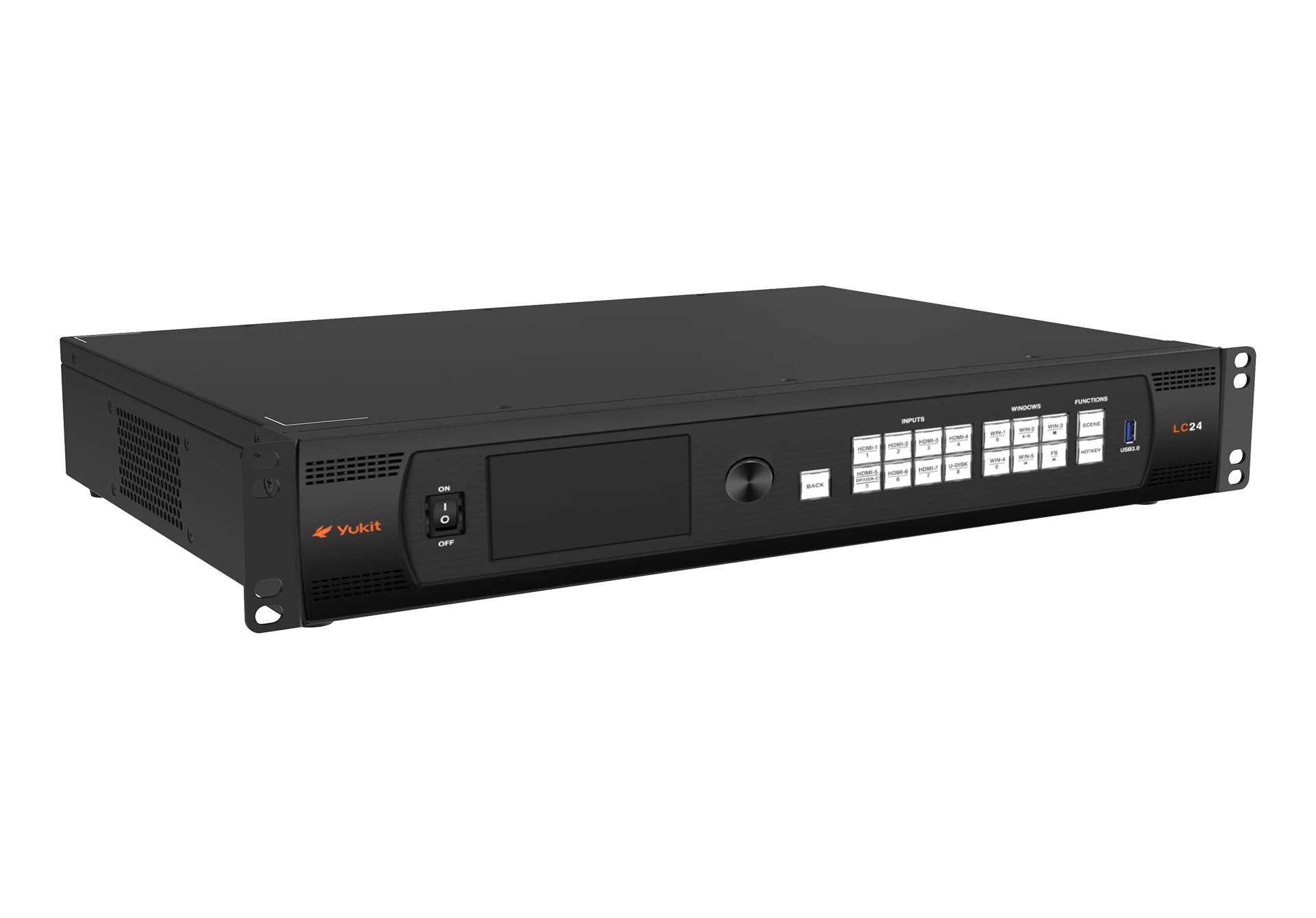

2-in-1 LED controllers integrate signal transmission and video wall control function, equipped with self-developed high-performance engine.

Real-Time Signal Monitoring

Supports signal pre-monitoring and real-time protection for stable operation, ideal for stage performance signals.

True color HDR engine

Fully compatible with HDR10, delivers wider color gamuts and higher contrast ratios for a truly immersive cinematic experience.

Pixel-Perfect uniformity

Pixel-level brightness & chroma calibration across the entire display guarantees perfect visual uniformity.

Brightness-Optimized Calibration

Pixel-level luminance correction across the entire display delivers perfect brightness uniformity.

Independent Gamma Tuning

Independent gamma adjustment support enables precise luminance curve calibration for tailored visual performance.

Pixel-Perfect Gamut

Pixel-level gamut calibration across the entire display guarantees true-to-life color uniformity.

Low-Latency Visuals

Ultra-low latency transmission ensures real-time, smooth visuals on LED displays.

Multi-layer Arbitrary Layout

Supports up to 6 labeled, freely positioned display layers, with one-key layout switching via manual, scheduled, or laser control.

LED Display Management

On-site screen control (power, config, color temp, brightness, modes) and real-time monitoring of temperature, humidity, and status.

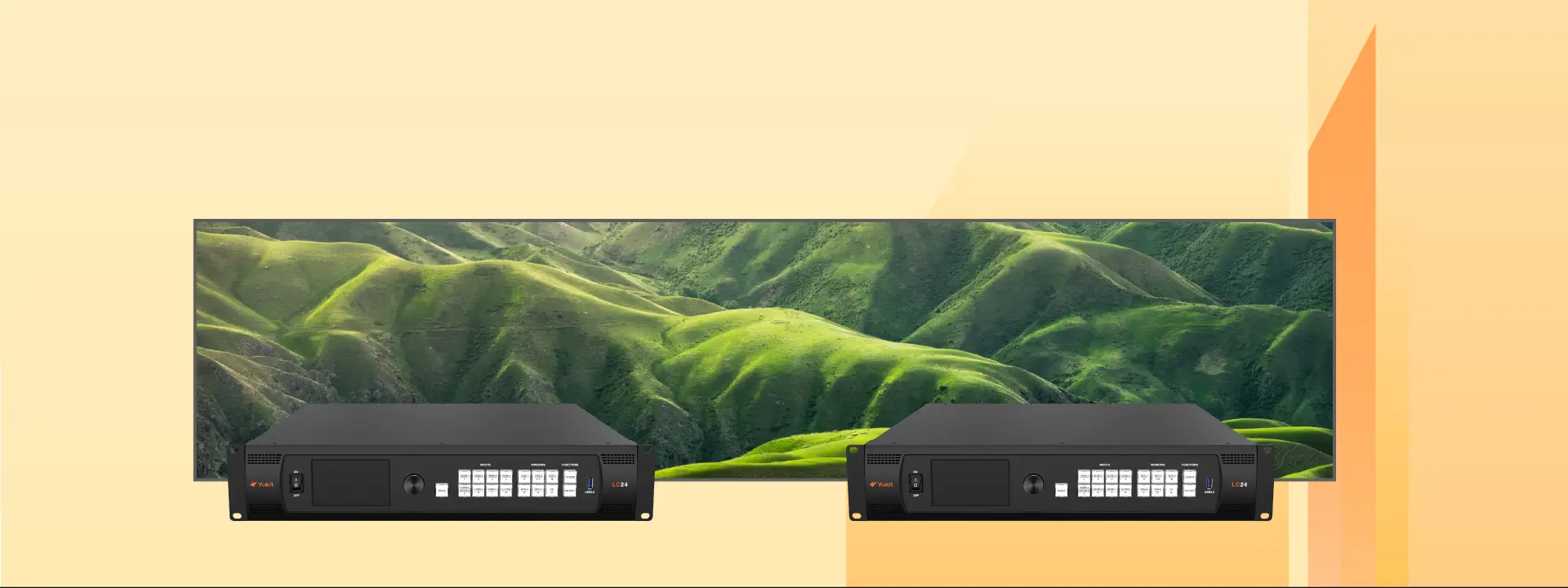

Dual-Machine Backup

Dual-machine backup provides seamless redundancy, ensuring non-stop stable signal output.

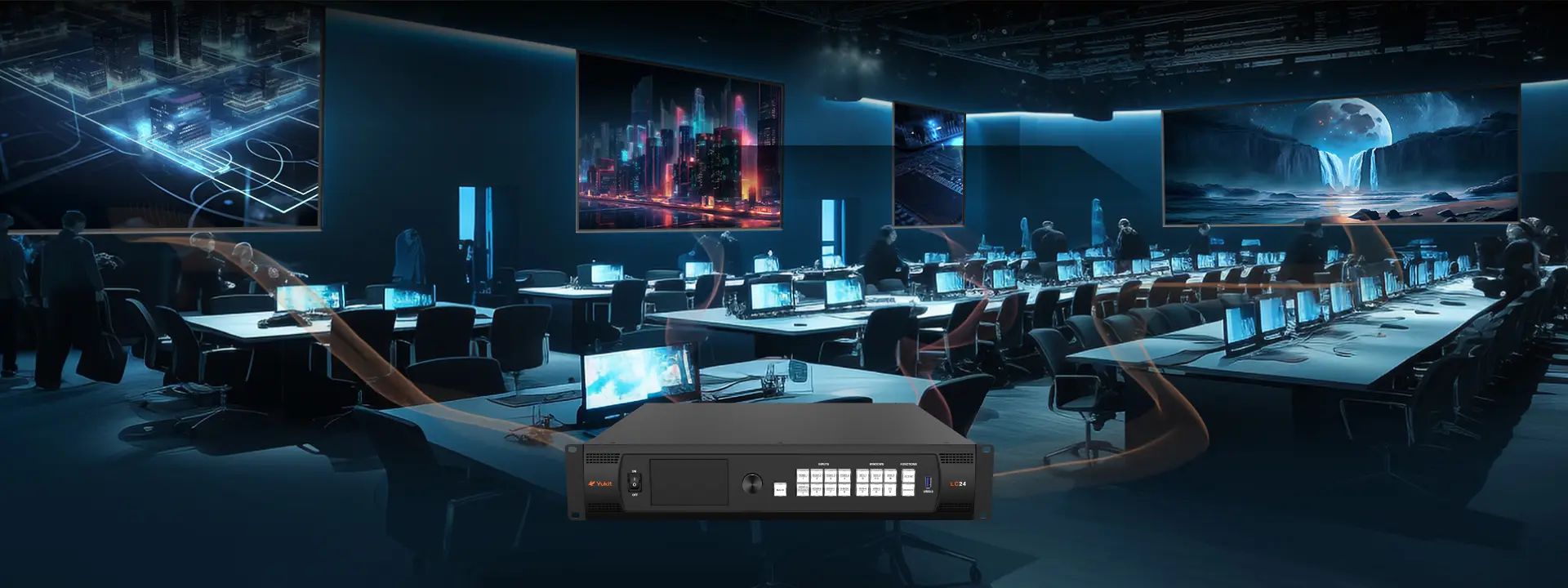

Unified Control of Multiple Screen Groups

A single processor centrally controls diverse screen groups, simplifying deployment and cutting costs.

SPECS

Features	LT102	LT104	LT106	LT220
Load Capacity	130W	230W	230W	880W
Max Width × Height	3840×3840	3840×3840	3840×3840	4096×4096
Audio & Video Interfaces	DVI × 1 (+Loop) HDMI × 1 (+Loop) AUDIO × 1			HDMI2.0 × 1 (+Loop)
Maximum Input Resolution	1920 × 1200@60HZ	1920 × 1200@60HZ	1920 × 1200@60HZ	4096 × 2160@60Hz
Number of Output Ethernet Ports	2	4	6	20
Number of Output Fiber Ports	○	○	○	4
3D	●	●	●	●
HDR	●	●	●	●
EDID Management	●	●	●	●
Pixel-by-Pixel Brightness & Chroma Calibration	●	●	●	●
Multi-Device Cascading	●	●	●	○

Features	LC1102	LC1105	LC1105P	LC1306	LC1308	LC1310	LC1312	LC2620	LC2620P	LC2624
Number of Layers	1	1	1	3	3	3	3	6	6	6
Number of Ethernet Ports	2	5	5	6	8	10	12	20	20	24
Number of Fiber Interfaces	○	○	○	2	2	2	○	4	4	○
Loadable Pixels	130W	230W	325W	390W	520W	650W	780W	1040W	1300W	1560W
Max Width × Height	3840 × 2160	3840 × 2160	4096 × 4096	10240 × 8192	10240 × 8192	10240 × 8192	10240 × 8192	16384 × 8192	16384 × 8192	16384 × 8192
Audio & Video Interfaces	DVI × 1 \| HDMI × 1 \| VGA × 1 USB × 1 \| CVBS × 1 \| AUDIO × 1			Standard Configuration: HDMI2.0 × 1 \| HDMI1.3 × 1 (+Loop) \| HDMI1.3 × 1 \| USB × 1 \| [DVI × 1] Optional Configuration: [SDI-12G (+Loop) or DP1.2]				Standard Configuration: HDMI2.0 × 1 (+Loop) \| DVI × 4 \| SDI-3G × 1 (+Loop) Optional Configuration: SDI-12G (+Loop) or DP1.2
4K@60	○	○	○	●	●	●	●	●	●	●
Stepless Scaling	●	●	●	●	●	●	●	●	●	●
Multi-Scene Recall	○	○	○	64	64	64	64	64	64	64
OSD Logo	○	○	○	●	●	●	●	●	●	●
Loop Backup	●	●	●	●	●	●	●	●	●	●
Visual Preview	○	○	○	●	●	●	●	●	●	●
Multi-Control Modes	●	●	●	●	●	●	●	●	●	●
