UniStream-HL Light Compression AV over IP Solution
The Power-Value Champion.
The Power-Value Champion.
4K60 enabled AV over IP solution, integrated powerful KVM and unbeatable video wall functionalities

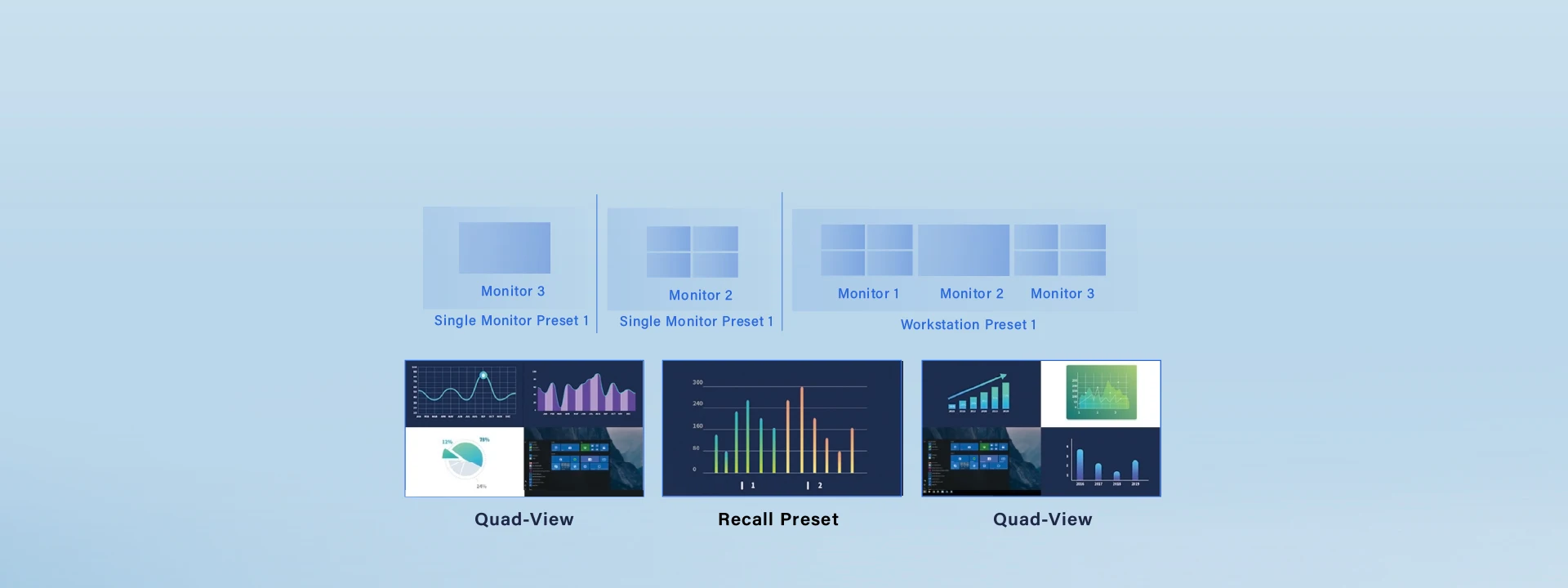

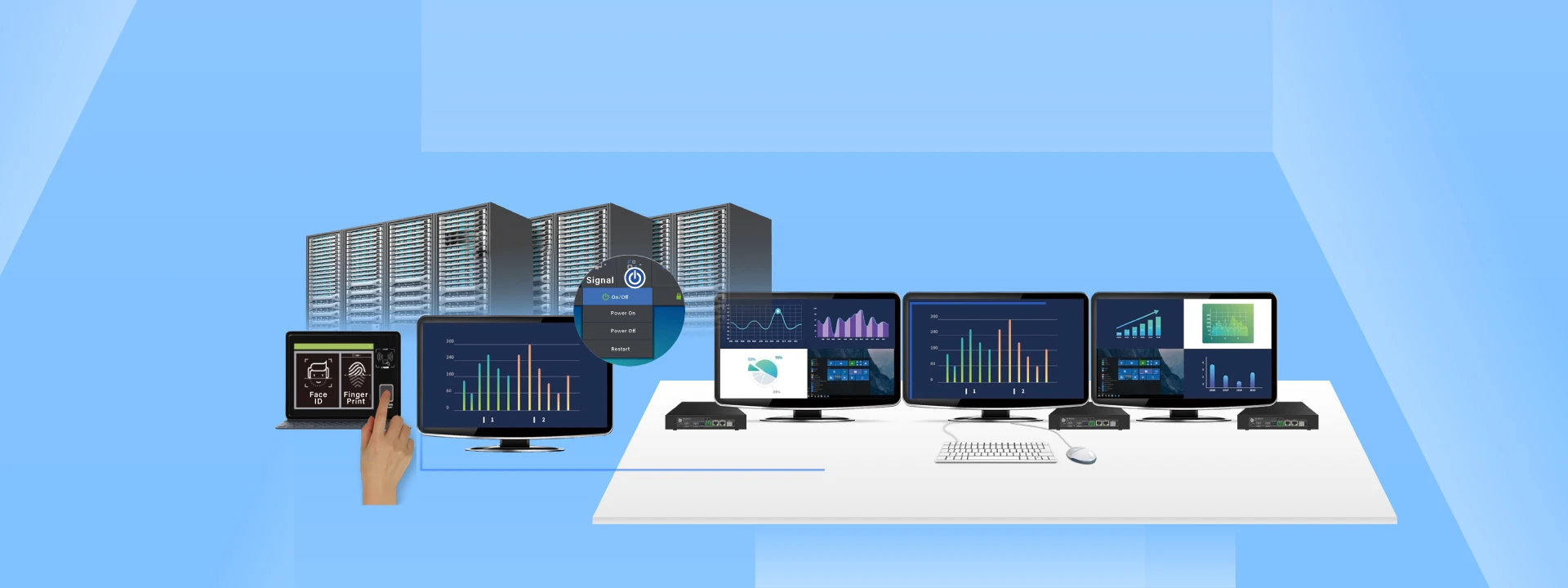

Featured with free slide among monitors, UniStream-H enables operator manager work with multiple monitors through one keyboard and mouse set. For each monitor, operator can either enable single-view to work on details or quad-view to watch more computers.

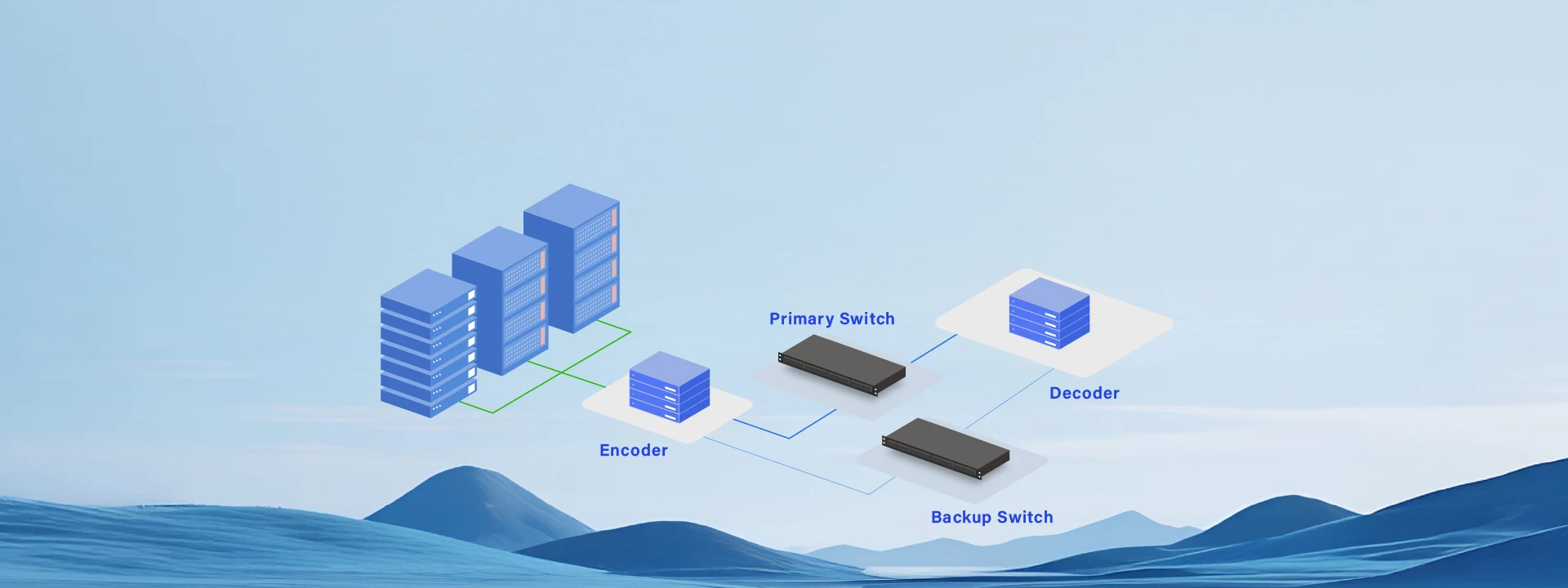

UniStream-H offers multilevel backup options to accommodate various requirements in different situations, enabling reliable and uninterrupted operation.

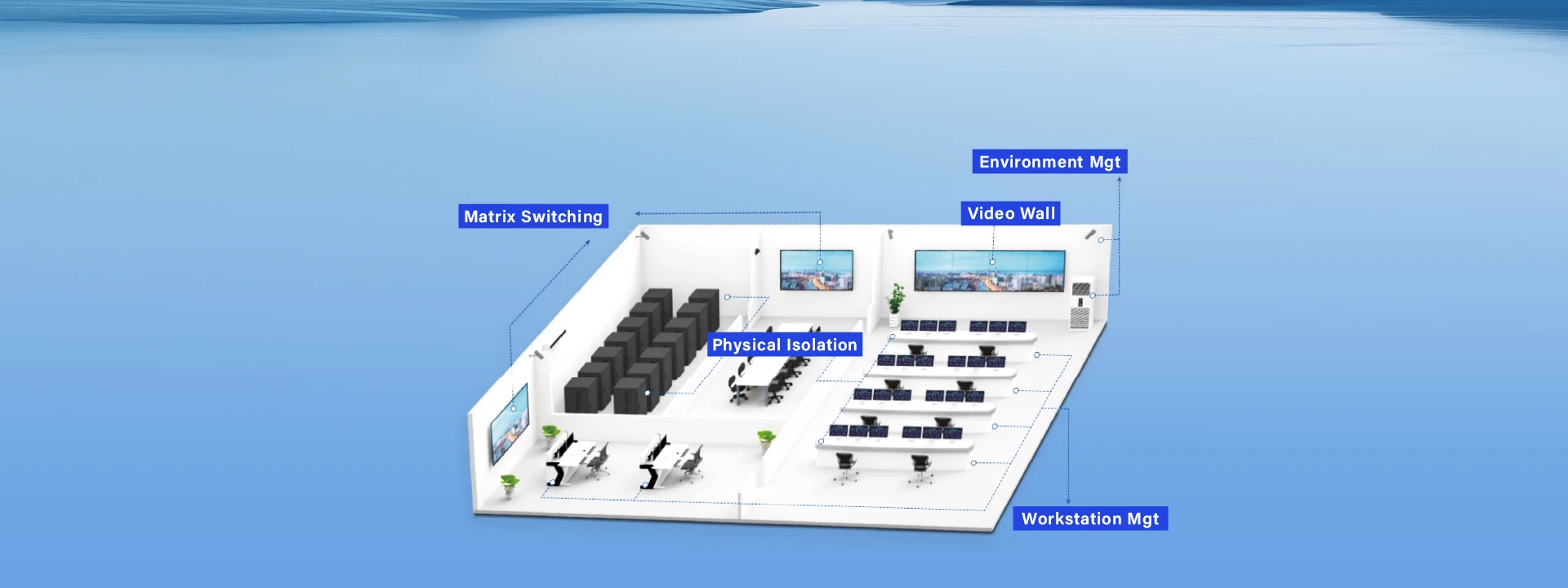

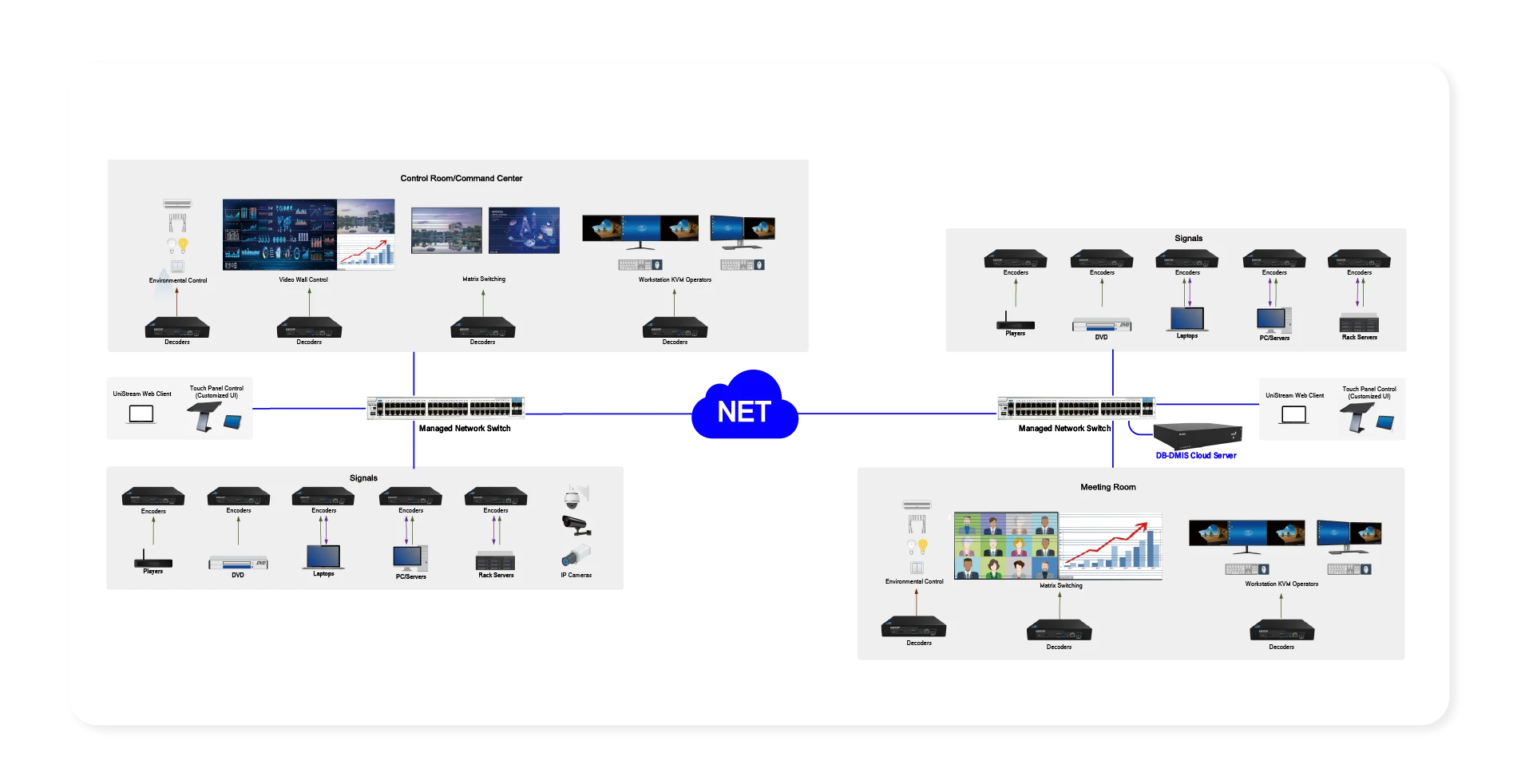

The UniStream-H platform simplifies your AV architecture by consolidating the functionality of AV & KVM distribution, matrix switching, and video wall control into a single, integrated solution. This eliminates the need for third-party devices such as separate KVM switches, matrix switchers, and video wall controllers.

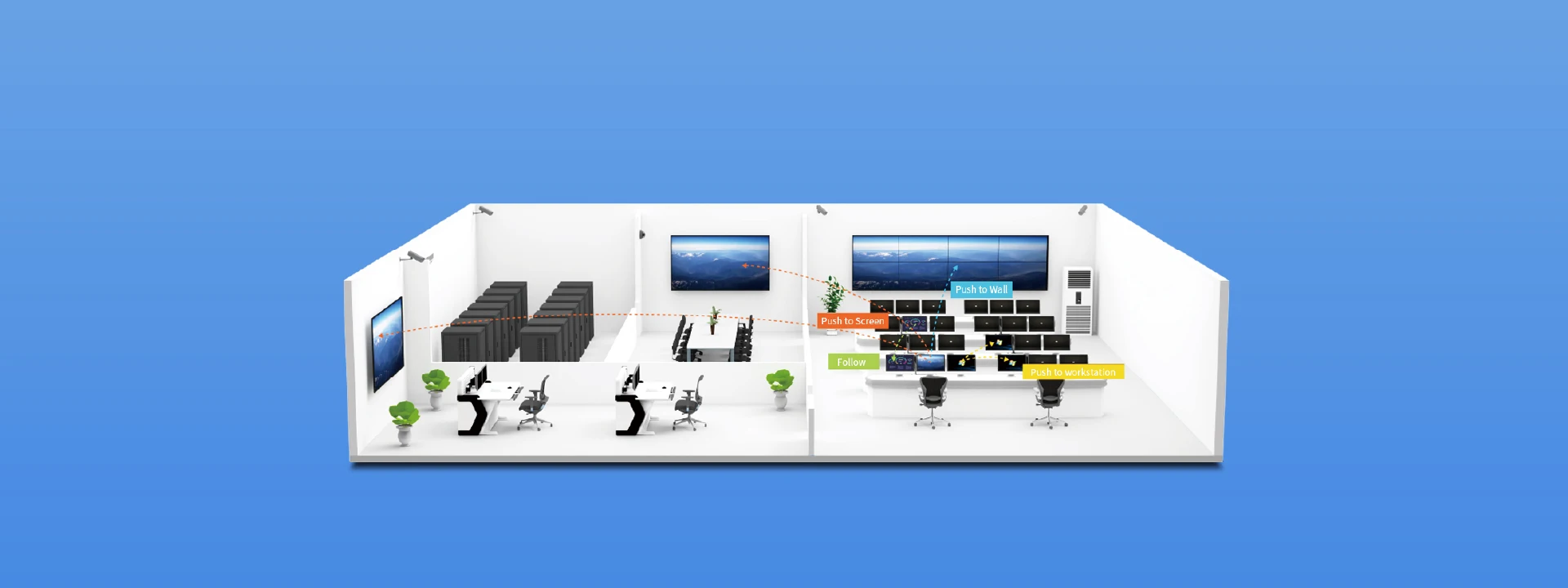

The modern control room requires its operators, supervisors and managers to collaborate effectively.

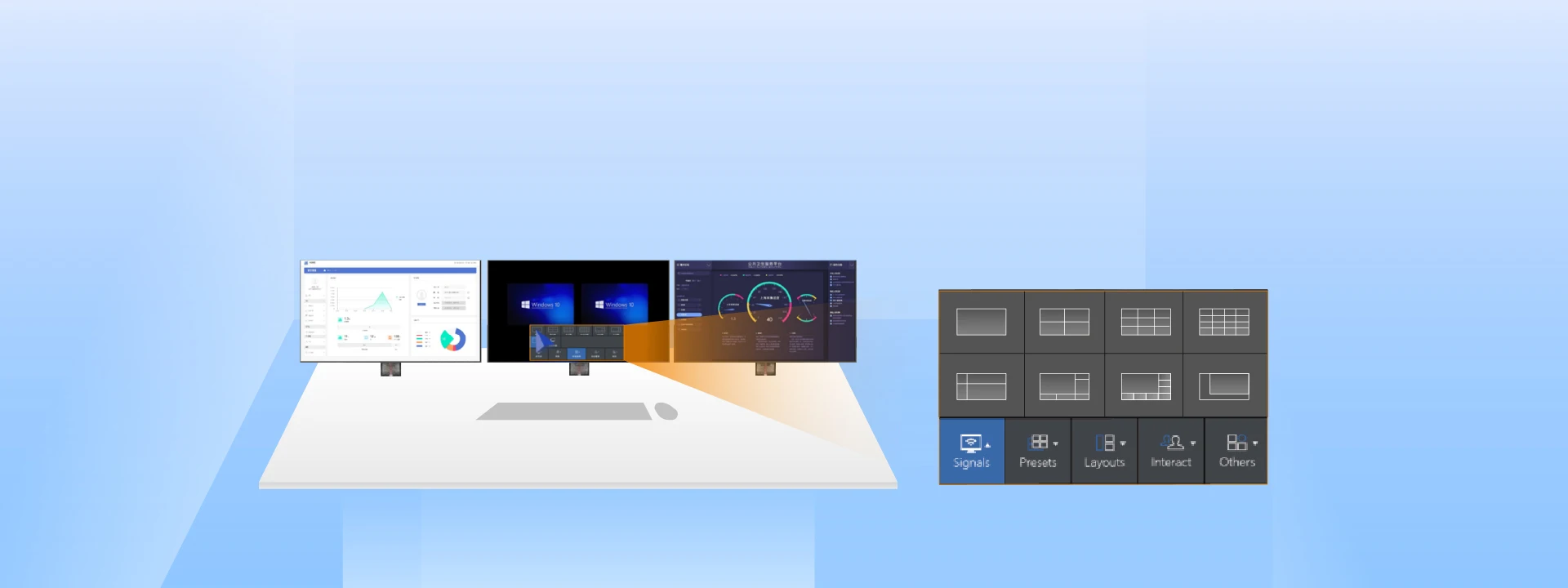

UniStream-H enables operators to monitor multiple computers simultaneously from workstation. With flexible layout customization, users can arrange computer sources according to their business needs and preferences, significantly boosting productivity and workflow efficiency.
UniStream-H offers a smart method to manage user account. Log in over Face ID and Finger print is supported. Operator is able to power on or power off remote computers via OSD menu at workstation.

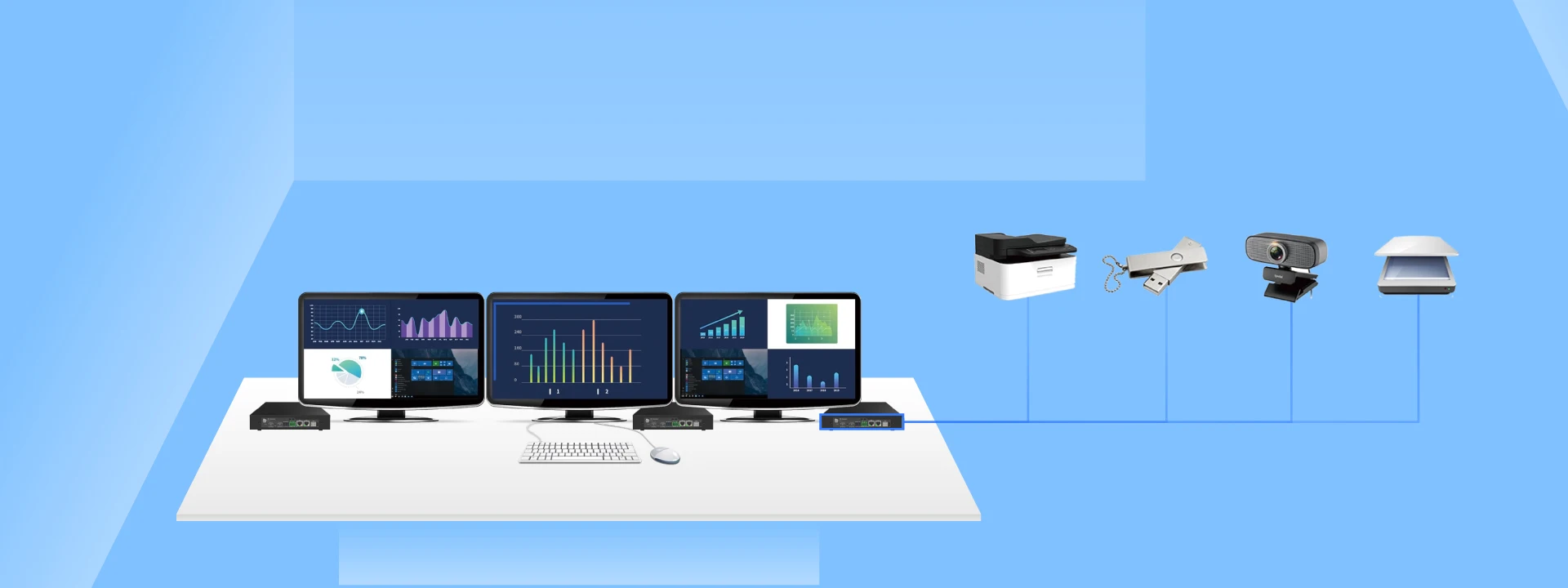

The system complies with USB 2.0 protocol, allowing operators to access USB devices, such as portable storage devices, printers, and cameras from workstation side even when the computer is physically located in server room.

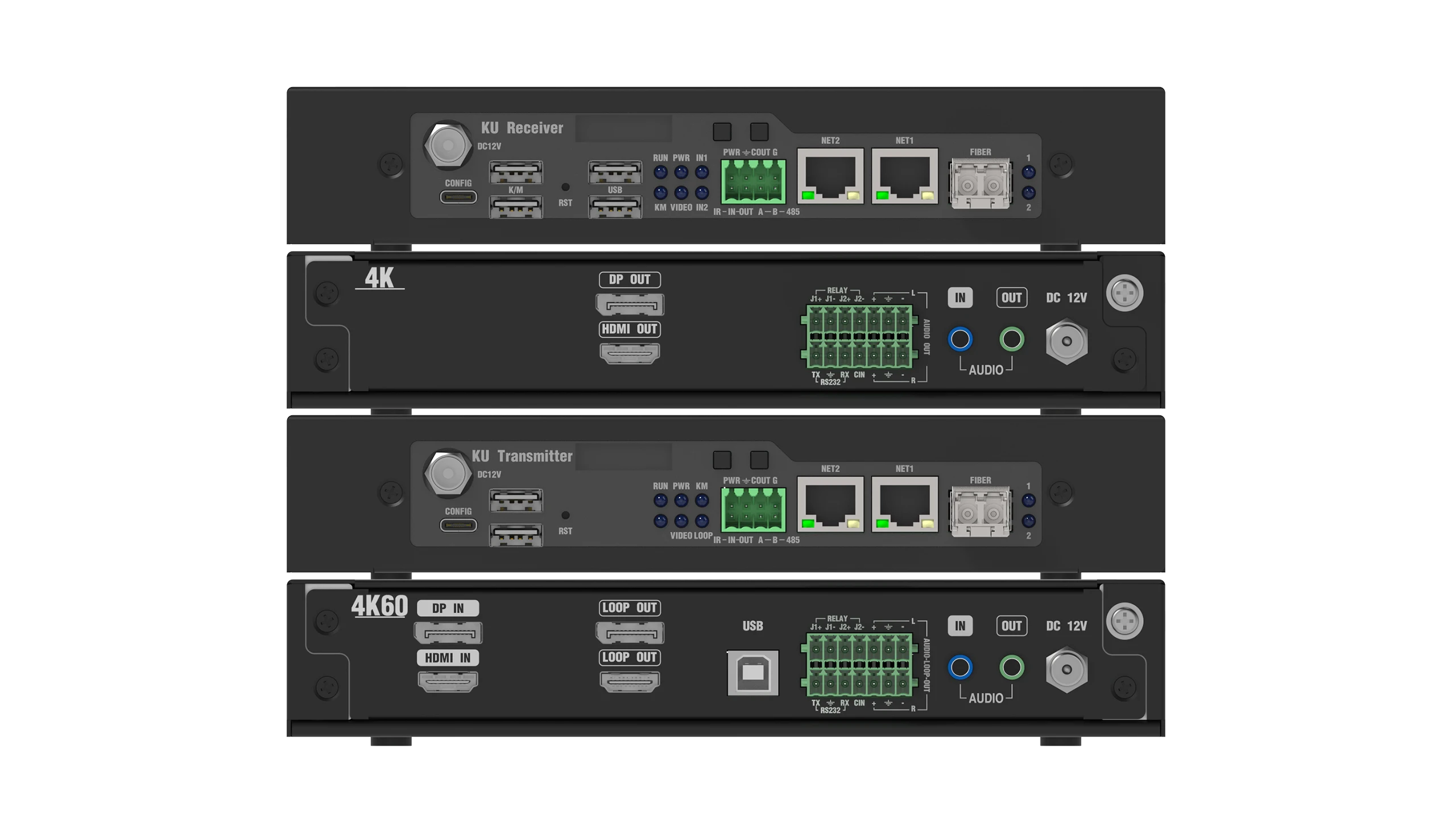

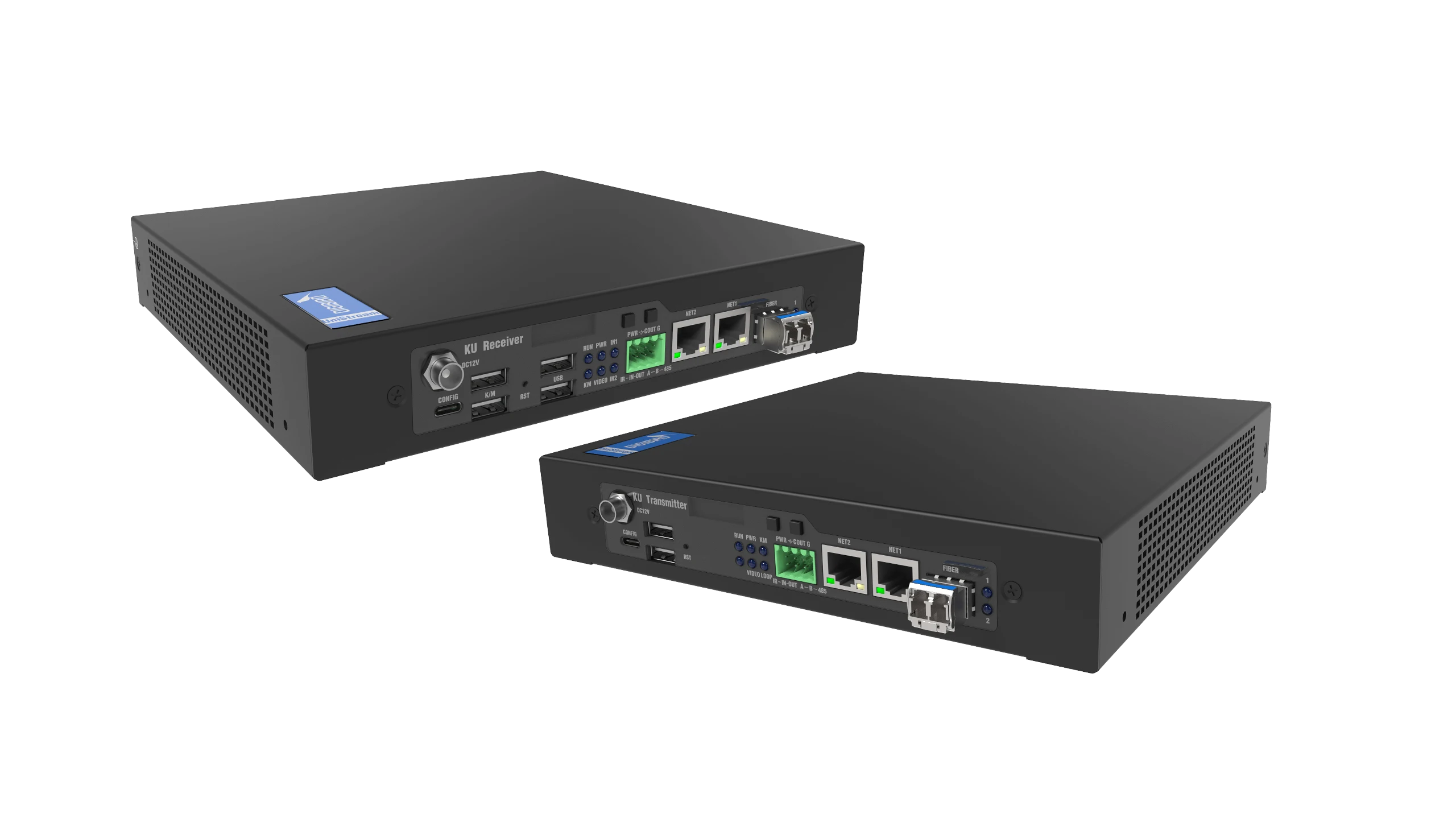

| Specifications of UniStream-HL series | ||||||
| VA ENCODER/DECODER | ||||||
| Order Code: | Name | Port Type: | Description: | Resolution: | ||
| Encoder (POE) | DB-UniStream-HL-4KHDMI-DP-VATX | 4K30 HDMI & DP VA Encoder | HDMI & DP | 4K30 HDMI & DP Video and Audio Encoder | 4096x 2160/30Hz 3840x 2160/30Hz |
|
| DB-UniStream-HL-4K60HDMI-DP-VATX | 4K60 HDMI & DP VA Encoder | HDMI & DP | 4K60 HDMI & DP Video and Audio Encoder | 4096x 2160/60Hz 3840x 2160/60Hz |
||
| Decoder (POE) | DB-UniStream-HL-4KHDMI-DP-VARX | 4K30 HDMI & DP VA Decoder | HDMI & DP | 4K30 HDMI & DP Video and Audio Encoder | 4096x 2160/30Hz 3840x 2160/30Hz |
|
| DB-UniStream-HL-4K60HDMI-DP-VARX | 4K60 HDMI & DP VA Decoder | HDMI & DP | 4K60 HDMI & DP Video and Audio Encoder | 4096x 2160/60Hz 3840x 2160/60Hz |
||
| VW DECODER | ||||||
| Order Code: | Name | Port Type: | Description: | Resolution: | ||
| Decoder (POE) | DB-UniStream-HL-4KHDMI-DP-VWRX | 4K30 HDMI & DP VW Decoder | HDMI & DP | 4K30 HDMI & DP Video Wall Decoder, Show max. 4x windows with free layout | 4096x 2160/30Hz 3840x 2160/30Hz |
|
| DB-UniStream-HL-4K60HDMI-DP-VWRX | 4K60 HDMI & DP VW Decoder | HDMI & DP | 4K60 HDMI & DP Video Wall Decoder, Show max. 4x windows with free layout | 4096x 2160/60Hz 3840x 2160/60Hz |
||
| KM ENCODER/DECODER | ||||||
| Order Code: | Name | Port Type: | Description: | Resolution: | ||
| Encoder (POE) | DB-UniStream-HL-4KHDMI-DP-KMTX | 4K30 HDMI & DP KM Encoder | HDMI & DP | 4K30 HDMI & DP KVM Encoder | 4096x 2160/30Hz 3840x 2160/30Hz |
|
| DB-UniStream-HL-4K60HDMI-DP-KMTX | 4K60 HDMI & DP KM Encoder | HDMI & DP | 4K60 HDMI & DP KVM Encoder | 4096x 2160/60Hz 3840x 2160/60Hz |
||
| Receiver Box (POE) | DB-UniStream-HL-4KHDMI-DP-KMRX | 4K30 HDMI & DP KM Decoder | HDMI & DP | 4K30 HDMI & DP KVM Decoder | 4096x 2160/30Hz 3840x 2160/30Hz |
|
| DB-UniStream-HL-4K60HDMI-DP-KMRX | 4K60 HDMI & DP KM Decoder | HDMI & DP | 4K60 HDMI & DP KVM Decoder | 4096x 2160/60Hz 3840x 2160/60Hz |
||
| KU ENCODER/DECODER | ||||||
| Order Code: | Name | Port Type: | Description: | Resolution: | ||
| Encoder (POE) | DB-UniStream-HL-4KHDMI-DP-KUTX | 4K30 HDMI & DP KU Encoder | HDMI & DP | 4K30 HDMI & DP KVM Encoder, Support USB 2.0 | 4096x 2160/30Hz 3840x 2160/30Hz |
|
| DB-UniStream-HL-4K60HDMI-DP-KUTX | 4K60 HDMI & DP KU Encoder | HDMI & DP | 4K60 HDMI & DP KVM Encoder, Support USB 2.0 | 4096x 2160/60Hz 3840x 2160/60Hz |
||
| Decoder (POE) | DB-UniStream-HL-4KHDMI-DP-KURX | 4K30 HDMI & DP KU Decoder | HDMI & DP | 4K30 HDMI & DP KVM Decoder, Support USB 2.0 | 4096x 2160/30Hz 3840x 2160/30Hz |
|
| DB-UniStream-HL-4K60HDMI-DP-KURX | 4K60 HDMI & DP KU Decoder | HDMI & DP | 4K60 HDMI & DP KVM Decoder, Support USB 2.0 | 4096x 2160/60Hz 3840x 2160/60Hz |
||
| Order Code: | Name | Chassis | Description: | |||
| Controllers | DB-DMIS-CP-3100 | DMIS-3100 Central Controller | 2U Chassis | DMIS Central Controller 3.0 Gen, Manage up to 200x endpoints Support Tablet UI Customization and 3rd Devices, Support Workstation meeting conference module. |
||
| DB-DMIS-CP-3200 | DMIS-3200 Central Controller | 2U Chassis | DMIS Central Controller 3.0 Gen, Manage up to 500x endpoints Support Tablet UI Customization and 3rd Devices, Support Dual Server Hot standby Support Workstation meeting conference module. |
|||
| DB-DMIS-CP-3300 | DMIS-3300 Central Controller | 2U Chassis | DMIS Central Controller 3.0 Gen, Manage up to 1000x endpoints Support Tablet UI Customization and 3rd Devices, Support Dual Server Hot standby Support Workstation meeting conference module. |
|||
| DB-UniManager Series | UniManager Series Controller, Manager up to 50x endpoints. Support Tablet UI Customization and 3rd Party Devices. Support Dual Control Cards (some model) Support Dual Server Hot Standby |
|||||
